150W 888nm 200μm Fiber Coupled Power Diode Laser
Description

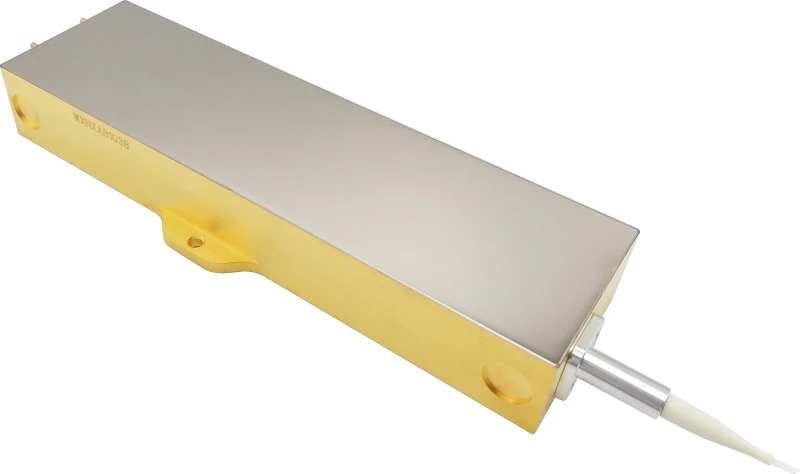

The GKER Photonics 150W 888nm 200μm Fiber Coupled Power Diode Laser (GK-WS888150200S) is engineered to meet the demands of high-performance applications in industrial, medical, and scientific fields. This laser offers a robust optical output power of 150W, with a center wavelength of 888nm, making it suitable for precise and high-power operations.
The laser features a fiber core diameter of 200μm and a numerical aperture (NA) of 0.22, ensuring efficient coupling and optimal beam quality. It operates with a spectral width of 1.0nm (FWHM), providing stable and focused performance for various demanding applications. The power conversion efficiency is 48%, which translates to energy-efficient operation, while the operating current ranges from 6A to 12A, offering flexibility in power control.
With a 2.0-meter pigtail length and an SC/SMA905 connector, the laser is designed for easy integration into existing systems and versatile configurations. The wavelength stability and high power make it ideal for high-precision tasks such as laser pumping, materials processing, medical treatments, and advanced optical research.
150W 888nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 888 nm |
| Output Power: | 150000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 150 W |
| Center Wavelength: | 888 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 12.0 A |
| Operating Voltage: | 28.5 V |
| Conversion Efficiency: | 48 % |
| Wavelength Stabilized Current Range: | Min:6.0 Max:12.0 A |
Features
- High Optical Output Power: Provides up to 150W for demanding applications
- Stable Wavelength: Center wavelength of 888nm with a narrow spectral width of 1.0nm
- 200μm Fiber Core: Ensures efficient power delivery with a numerical aperture (NA) of 0.22
- High Conversion Efficiency: Achieves 48% efficiency for energy savings
- Wide Operating Current Range: Operates between 6A and 12A
- SC/SMA905 Connector: For reliable and easy system integration
- Durable Design: Built for industrial-grade performance with stable operation
Applications
- Solid-State Laser Pumping: Efficiently used for pumping solid-state lasers in scientific and industrial settings
- Materials Processing: Ideal for high-precision tasks like cutting, welding, and engraving
- Medical Laser Systems: Suitable for medical applications requiring high power and precision
- Scientific Research: Supports complex optical experiments with stable and reliable power
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum optical output power is 150W.
The center wavelength is 888nm, with a range from 887.5nm to 888.5nm.
The spectral width is 1.0nm (FWHM).
The numerical aperture (NA) of the fiber is 0.22.
The fiber pigtail length is 2.0 meters.
The laser uses an SC/SMA905 connector.
The power conversion efficiency is 48%.
The operating current range is 6A to 12A.
Typical applications include solid-state laser pumping, materials processing, medical laser systems, and scientific research.
The core diameter of the fiber is 200μm.
