Description
The GKER Photonics 200W 450nm Fiber Coupled Power Diode Laser (GK-450200200S) offers a powerful and precise solution for high-performance applications. Operating at a center wavelength of 450nm with a maximum output power of 200W, this diode laser provides exceptional blue light output. Its fiber coupling system, featuring a 200μm core diameter and an SMA905 connector, ensures high efficiency and ease of integration into various systems.
This diode laser is designed with a 95% power numerical aperture (NA) of 0.20, which allows for precise light transmission and focusing. The typical conversion efficiency of 20% ensures a high power-to-output ratio, maximizing operational efficiency. With an operating current of 200A and voltage of 203V, the GK-450200200S laser is ideal for applications requiring high power and stable performance.
The durable 1.5m pigtail and the SMA905 connector make this diode laser easily adaptable for industrial and scientific use. The GK-450200200S excels in laser marking, material processing, and scientific research, offering reliable, high-intensity performance for demanding tasks.

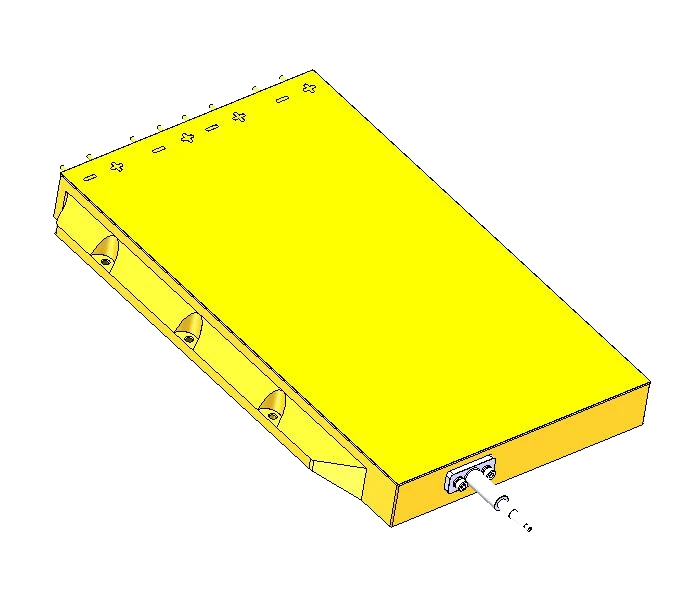

200W 450nm 200μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 450 nm |
| Output Power: | 200000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 200 W |
| Center Wavelength: | 450 nm |
| 95% Power NA: | 0.19 - |
| Core Diameter: | Min:197 Typ:200 Max:203 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Connector: | SMA905 - |
| Operating Current: | 2.5 A |
| Operating Voltage: | 100×4/400 V |
| Conversion Efficiency: | 20 % |
Download Data Sheet
Features
- High Output Power: Provides up to 200W of continuous power, ideal for high-intensity applications
- 450nm Center Wavelength: Delivers precise blue light for a wide range of industrial and scientific uses
- 200μm Fiber Core: Ensures efficient light transmission and easy system integration
- Numerical Aperture (NA) of 0.22: Supports high efficiency coupling and precise beam control
- SMA905 Connector: Standardized for easy integration with existing systems
- 1.5m Pigtail Length: Flexible and durable, perfect for various setups
- High Conversion Efficiency: Offers a typical efficiency of 20%, ensuring optimal power utilization
Applications
- Laser Marking: Ideal for high-precision marking on various materials
- Material Processing: Suited for cutting, engraving, and welding applications
- Scientific Research: Provides reliable, high-power output for laboratory experiments
Frequently Asked Questions
What is the maximum output power of the 200W 450nm fiber-coupled diode laser?
What is the center wavelength of this laser?
What is the fiber core diameter of this diode laser?
What type of connector does this laser use?
What is the numerical aperture (NA) of the fiber?
What is the typical conversion efficiency of this diode laser?
How long is the pigtail length for this laser?
What are some common applications for this diode laser?
What is the operating current and voltage of the laser?
Is this diode laser suitable for high-intensity applications?
