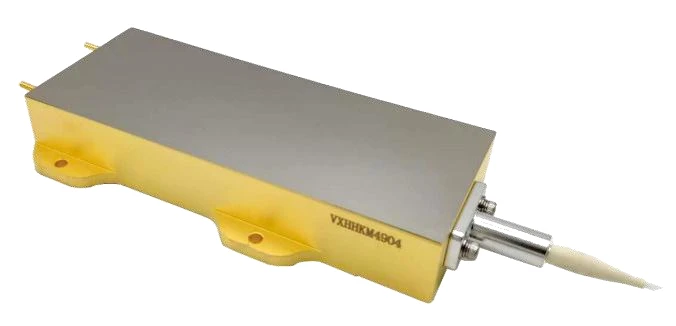

200W 915nm 135μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 200W 915nm 135μm Fiber Coupled Power Diode Laser is engineered to deliver exceptional performance in demanding industrial and research applications. This high-power diode laser boasts an impressive output power of 200W, making it ideal for high-precision tasks such as fiber laser pumping, material processing, and advanced laser technologies.
With a center wavelength of 915nm, this diode laser ensures stable and reliable operation, which is critical for applications requiring specific wavelengths. The fiber features a 135μm core diameter and a numerical aperture of 0.22, optimizing light transmission and focusing accuracy. The laser provides a high conversion efficiency of up to 48%, which enhances its energy efficiency and reduces operational costs.
The spectral width of 2.0nm (FWHM) ensures precise control over the emitted wavelength, essential for applications demanding narrowband output. Its robust design includes a 2-meter pigtail length, allowing for flexible integration into various systems. Operating at a maximum current of 26.5A and voltage of 18V, this laser provides consistent performance under high-power conditions. The GK-915V200135 is designed for environments where reliability and high power are paramount.
200W 915nm 135μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 200000 mW |
| Fiber Core Diamater: | 135 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 200 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:133.5 Typ:135.0 Max:136.5 μm |
| Pigtail Length: | Min:133.5 Typ:135.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 18.0 V |
Features
- 200W Output Power: High output suitable for demanding applications such as fiber laser pumping and material processing
- 915nm Center Wavelength: Stable wavelength ideal for specific industrial and research uses
- 135μm Core Diameter: Allows efficient light transmission and high power delivery
- Numerical Aperture of 0.22: Provides precise light control and focusing capability
- 2.0nm Spectral Width (FWHM): Ensures narrowband emission for accurate wavelength control
- Up to 48% Conversion Efficiency: Energy-efficient operation, reducing overall operational costs
- Durable Design: Robust and reliable performance for demanding applications
Applications
- Fiber Laser Pumping: Efficient power delivery for high-performance fiber lasers
- Material Processing: Ideal for cutting, welding, and marking applications requiring high power
- Advanced Laser Technologies: Suitable for high-precision laser applications and research
- Laser-Based Manufacturing: Reliable for high-power manufacturing processes and systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides up to 200W of output power, making it suitable for high-performance industrial and research applications.
The center wavelength is 915nm, which is ideal for various high-precision applications.
The core diameter of the fiber is 135μm, allowing for efficient light transmission.
The numerical aperture is 0.22, providing precise light control and focusing.
The spectral width is 2.0nm (FWHM), ensuring narrowband emission for accurate wavelength control.
The laser operates with a maximum current of 26.5A, ensuring consistent high-power performance.
The operating voltage is up to 18V, suitable for high-power demands.
The conversion efficiency is up to 48%, enhancing energy efficiency and reducing operational costs.
The pigtail length is 2 meters, providing flexibility for system integration and installation.
The wavelength range spans from 900nm to 930nm, offering stability and versatility for various applications.
