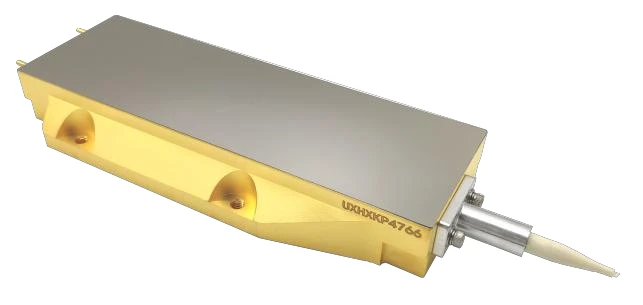

200W 976nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 200W 976nm 105μm Fiber Coupled Power Diode Laser (GK-976200105) delivers exceptional power and precision, making it ideal for industrial and scientific applications. Featuring a center wavelength of 976 nm and an output power of 200W, this diode laser is designed for high-efficiency fiber laser pumping, material processing, and medical applications.
The fiber coupling is built with a core diameter of 105μm and a numerical aperture of 0.22, ensuring optimal light transmission and focus. The laser’s power is stabilized across its wavelength range, which extends from 973 nm to 979 nm, providing a stable spectral width of 2.0 nm (FWHM). Operating at a current range of 13.0 A and a voltage range of 36.5 V, this laser system ensures high conversion efficiency, reaching up to 48%.
The robust design of the fiber-coupled laser ensures reliable performance in challenging environments, allowing for smooth integration into a variety of laser systems. Whether for cutting-edge medical treatments, precise scientific research, or industrial-grade material processing, this laser delivers powerful results with exceptional wavelength stability and energy efficiency.
200W 976nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 200000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 200 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 13.0 A |
| Operating Voltage: | 36.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Provides up to 200W of output power for demanding applications
- Precise Wavelength Control: Operates with a center wavelength of 976nm, ensuring optimal performance
- Fiber Coupling: 105μm core diameter for efficient energy delivery and light transmission
- Numerical Aperture: Features a 0.22 NA for precise light focusing and control
- Wavelength Stability: Ensures consistent operation within a wavelength range of 973 nm to 979 nm
- High Conversion Efficiency: Achieves up to 48% efficiency for energy savings
- Robust Design: Designed for reliable performance in industrial and scientific applications
Applications
- Fiber Laser Pumping: Perfect for efficient and high-power fiber laser pumping applications
- Material Processing: Ideal for precision cutting, welding, and other material processing tasks
- Medical Laser Systems: Suitable for medical applications requiring high power and wavelength accuracy
- Scientific Research: Useful in scientific applications where high power and wavelength precision are essential
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides a maximum output power of 200 watts, making it suitable for high-power industrial and scientific applications.
The laser operates at a center wavelength of 976 nm, optimized for applications such as fiber laser pumping and precise material processing.
The fiber features a core diameter of 105μm, allowing for efficient light transmission and energy delivery in demanding optical systems.
The numerical aperture (NA) of 0.22 ensures precise light focusing and control, providing improved beam quality and coupling efficiency.
The diode laser achieves a typical conversion efficiency of up to 48%, ensuring maximum energy savings and high performance in applications.
The laser operates within a current range of up to 13.0 A, ensuring stable performance and adaptability to varying power requirements.
The operating voltage ranges up to 36.5 V, which supports high-power operation while maintaining reliable electrical performance.
The laser provides excellent wavelength stability, operating within a wavelength range of 973 nm to 979 nm, suitable for precise applications.
The spectral width (FWHM) is 2.0 nm, offering narrow linewidth operation ideal for applications requiring high spectral precision.
The typical pigtail length is 2 meters, providing flexibility for integration into a wide range of optical systems and setups.
