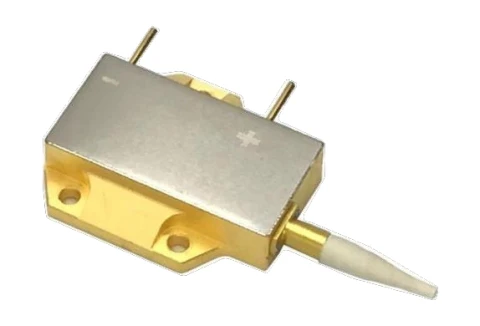

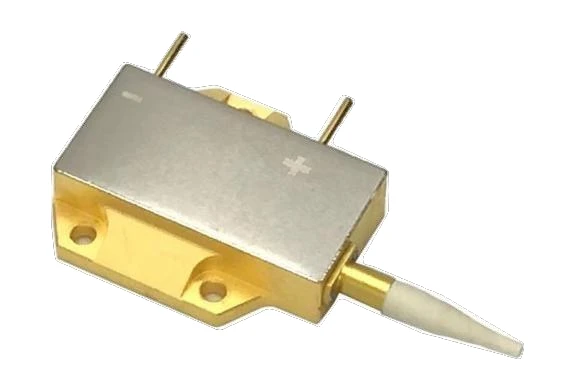

20W 976nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 20W 976nm 105μm Fiber Coupled Power Diode Laser offers superior performance for a wide range of industrial and medical applications. This high-efficiency diode laser features a maximum output power of 20W, making it ideal for precision work where both power and stability are crucial. The laser operates at a center wavelength of 976nm, providing accurate and reliable wavelength stability, even in demanding environments.
With a fiber core diameter of 105μm and a numerical aperture (NA) of 0.22, the laser ensures excellent beam quality and focus. The long pigtail fiber, measuring 2 meters, allows for easy integration into systems and facilitates flexible usage in diverse settings.
Designed for energy-efficient operation, this laser has a conversion efficiency of up to 10%, maximizing power usage while minimizing waste. The laser’s spectral width of 1.0nm ensures precise control over the wavelength, making it suitable for tasks that require high precision. Whether for material processing, medical instrumentation, or scientific research, the GK-WS976020105 provides reliability, stability, and efficiency.
20W 976nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 20000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 20 W |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:102 Typ:105Max:108 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 μm |
| Pigtail Length: | 1.2 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 5.5 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Features
- High Output Power: Delivers up to 20W of power for high-precision tasks
- Accurate Center Wavelength: Stabilized at 976nm for consistent performance
- Fiber Coupled Design: Features a 105μm core diameter for efficient power transmission
- Numerical Aperture (NA): NA of 0.22 provides excellent beam focus
- Energy-Efficient: Up to 10% conversion efficiency ensures minimal energy loss
- Long Pigtail Fiber: 2-meter fiber length for flexible integration
Applications
- Material Processing: Ideal for high-precision industrial material cutting and welding
- Medical Applications: Suitable for laser-based surgical procedures and medical instrumentation
- Scientific Research: Used in laboratories for advanced optical experimentation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 20W.
The center wavelength is stabilized at 976nm for precise operation.
The fiber core diameter is 105μm, allowing efficient power delivery.
The numerical aperture (NA) is 0.22, providing excellent beam focus and control.
The pigtail fiber length is 2 meters, offering flexibility in system integration.
The spectral width is 1.0nm, ensuring stable and narrow wavelength emission.
The conversion efficiency is up to 10%, optimizing energy usage.
Common applications include material processing, medical
The operating current range is from 5.5A to 10A.
Yes, the laser operates with a stabilized wavelength at 976nm.
