235W 808nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 235W 808nm 200μm Fiber Coupled Power Diode Laser (GK-808035200S) delivers high-performance optical power in a compact, robust package designed for a wide range of industrial, medical, and scientific applications. Featuring an output power of up to 235W, this diode laser is ideal for high-precision tasks that demand stability, efficiency, and reliability.
Engineered with a center wavelength of 808nm, this laser exhibits a spectral width of 4nm (FWHM) and provides excellent beam quality via a 200μm fiber. The fiber's core diameter and numerical aperture of 0.22 enable precise power delivery, even in demanding environments. With a power conversion efficiency of up to 46%, the laser maximizes energy use, while maintaining operational stability at an operating voltage range of 6V.
Designed with advanced thermal management and superior environmental stability, this fiber-coupled diode laser ensures minimal loss in signal, making it ideal for applications such as materials processing, medical therapies, and pumping solid-state lasers.

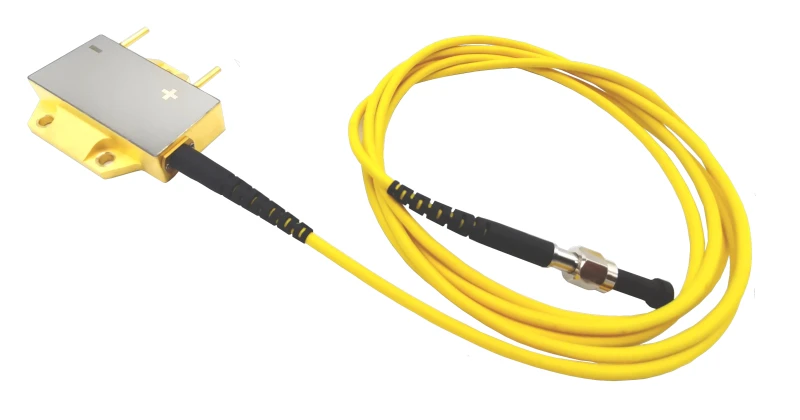

235W 808nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 235000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 235 W |
| Center Wavelength: | 808 nm |
| Spectral Width(FWHM): | 4 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 10.0 A |
| Operating Voltage: | 6.0 V |
| Conversion Efficiency: | 46 % |
Features
- High Output Power: Provides up to 235W of optical power, ensuring strong and efficient performance
- 808nm Center Wavelength: Delivers precision and stability at the industry-standard wavelength
- Spectral Width of 4nm (FWHM): Ensures consistent and reliable performance with minimal signal distortion
- 200μm Fiber Core: Enhances precision in optical delivery with a high numerical aperture (NA) of 0.22
- Efficient Power Conversion: Achieves up to 46% conversion efficiency for enhanced energy savings and operational stability
- SC/SMA905 Connector: Enables secure and reliable fiber connections for easy integration into various systems
- Compact and Durable Design: Optimized for industrial and medical applications requiring high durability
Applications
- Medical Therapies: Ideal for precise laser-based treatments, such as photodynamic therapy and tissue welding
- Materials Processing: Supports laser cutting, welding, and other industrial manufacturing tasks
- Pumping Solid-State Lasers: Provides reliable pumping for solid-state laser systems in scientific and industrial environments
- Research and Development: A versatile tool for optical experiments and laser-based studies
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides up to 235W of optical power.
The center wavelength is 808nm, with a typical range between 805nm and 811nm.
The fiber has a numerical aperture (NA) of 0.22.
The pigtail length is 2.0 meters.
It uses an SC/SMA905 connector for secure fiber connections.
The power conversion efficiency is typically 46%.
The spectral width is 4nm (FWHM).
Applications include medical therapies, materials processing, pumping solid-state lasers, and research.
The typical operating voltage is 6.0V.
The fiber core diameter is 200μm.
