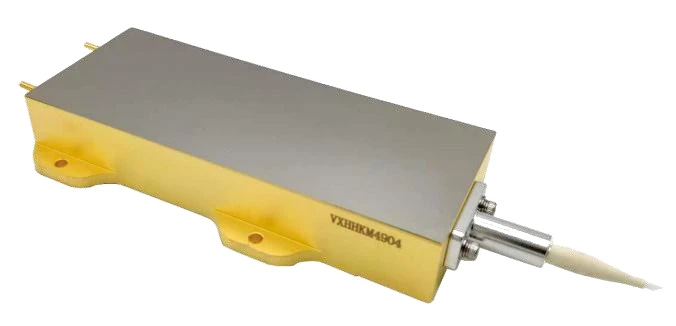

240W 976nm 135μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 240W 976nm 135μm Fiber Coupled Power Diode Laser is a high-performance laser solution designed for demanding applications requiring precision and power. With a maximum output power of 240W and a center wavelength of 976nm, this laser is ideal for industrial, medical, and research applications. The fiber-coupled design offers easy integration with optical systems, ensuring stable power delivery and enhanced performance.
Featuring a fiber core diameter of 135μm and a numerical aperture (NA) of 0.22, the laser delivers efficient optical power transmission with minimal losses. Its robust construction ensures excellent reliability and long-term stability, even in harsh environmental conditions. Additionally, the laser operates at a typical current of 21.5A and a voltage of 2.0V, providing efficient performance with a conversion efficiency of up to 48%.
This diode laser is engineered for applications such as laser pumping, material processing, and medical therapy, where precision and high power are critical. With a pigtail length of 2 meters and a flexible fiber interface, it ensures ease of integration into various optical systems, making it a versatile and reliable choice for professionals.
240W 976nm 135μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 240000 mW |
| Fiber Core Diamater: | 135 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 240 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:133.5 Typ:135.0 Max:136.5 μm |
| Numerical Aperture: | Min:0.215 Typ:0.220 Max:0.225 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 21.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 240W of optical power for demanding applications
- Center Wavelength: Operates at a wavelength of 976nm, suitable for a wide range of applications
- Fiber Coupled Design: Ensures efficient power delivery with a 135μm fiber core
- Low Numerical Aperture: Provides a NA of 0.22 for efficient light coupling
- High Conversion Efficiency: Achieves up to 48% conversion efficiency for energy savings
- Durable Construction: Built for reliable operation in challenging environments
Applications
- Laser Pumping: Ideal for high-power fiber laser and solid-state laser pumping
- Material Processing: Suitable for cutting, welding, and other industrial processes
- Medical Applications: Useful for laser therapy, diagnostics, and surgical procedures
- Research and Development: Perfect for scientific research requiring precise laser control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser delivers up to 240W of optical power.
The center wavelength is 976nm, with a typical range from 973nm to 979nm.
The fiber core diameter is 135μm.
The pigtail length is 2 meters.
The typical operating current is 21.5A, and the operating voltage is 2.0V.
The conversion efficiency is up to 48%.
This laser is ideal for applications such as laser pumping, material processing, and medical procedures.
Yes, the robust construction ensures reliable operation in challenging conditions.
The laser operates with a typical center wavelength of 976nm, with a tolerance range from 973nm to 979nm.
