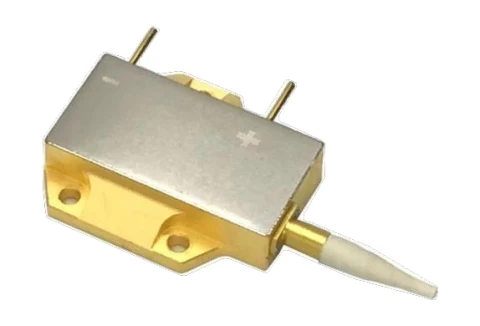

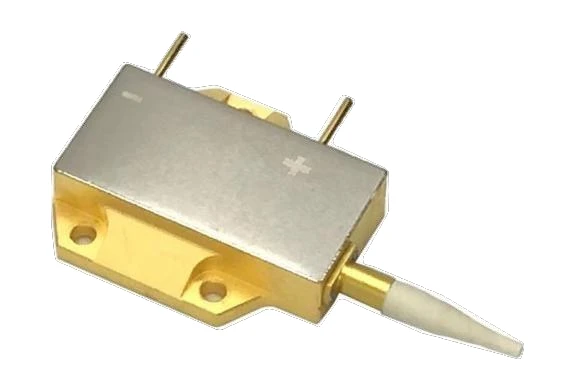

27W 976nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 27W 976nm Fiber Coupled Power Diode Laser offers exceptional performance for precision tasks across industrial and medical applications. Featuring a center wavelength of 976nm, this diode laser is wavelength-stabilized for superior accuracy. It comes equipped with a 105μm core diameter fiber, providing efficient power delivery and optimal beam focus.
The laser ensures excellent beam quality, thanks to its 0.22 numerical aperture (NA), while its spectral width (FWHM) of 1.0nm guarantees precise wavelength control. The compact design and 2-meter pigtail fiber offer flexibility in system integration. Operating at a typical voltage of 45V and delivering up to 27W of output power, this laser is ideal for tasks that require high accuracy and efficiency.
With a conversion efficiency of up to 10%, it ensures energy-efficient performance, making it an excellent choice for a variety of applications including medical procedures and industrial material processing.
27W 976nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 27000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 27 W |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 1.2 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 7.0 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Features
- High Output Power: Maximum power output of 27W for industrial-grade performance
- Wavelength-Stabilized: Center wavelength of 976nm ensures consistent, precise operation
- Optimized Beam Focus: 105μm core diameter fiber for efficient power transmission and focus
- Excellent Beam Quality: Numerical aperture of 0.22 for superior beam performance
- Flexible Integration: 2-meter pigtail fiber provides adaptability in system setups
- Energy Efficient: Conversion efficiency of up to 10% for optimal power use
- Compact Design: Ideal for space-constrained setups without compromising on power
Applications
- Industrial Material Processing: Ideal for high precision cutting and welding tasks
- Medical Applications: Suitable for precision surgical procedures and therapeutic treatments
- Laser Research and Development: Perfect for advanced laser experiments and studies
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 27W, ideal for high-precision industrial and medical applications.
The center wavelength is 976nm, providing wavelength stability and accuracy.
The fiber has a core diameter of 105μm, ensuring efficient power transmission and focused beam delivery.
The fiber has a numerical aperture (NA) of 0.22, which offers excellent beam quality and focus.
The pigtail fiber is 2 meters long, allowing flexibility in integration into various systems.
The spectral width (FWHM) is 1.0nm, ensuring precise wavelength control for specific applications.
The typical operating voltage is 45V, providing stable operation.
The conversion efficiency is up to 10%, ensuring energy-efficient performance.
It is ideal for industrial material processing, medical applications, and laser research and development.
Yes, the laser is wavelength-stabilized at 976nm for consistent and reliable performance in demanding applications.
