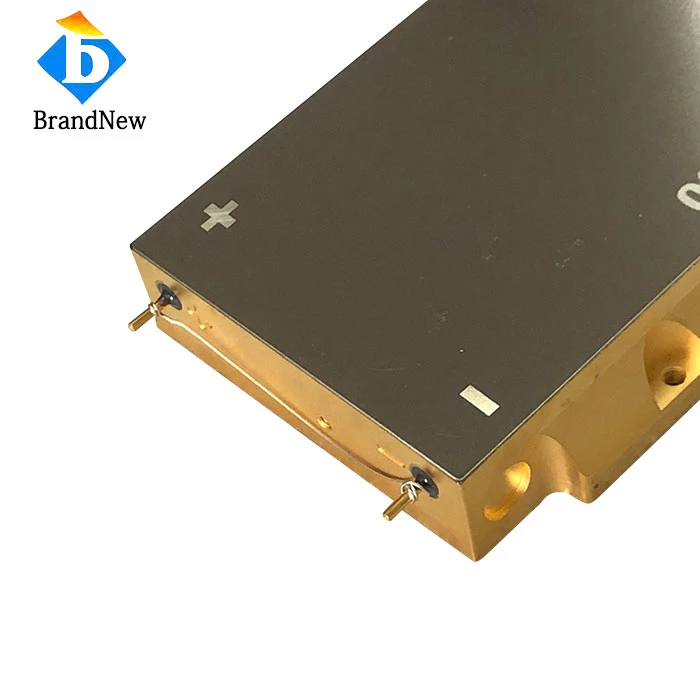

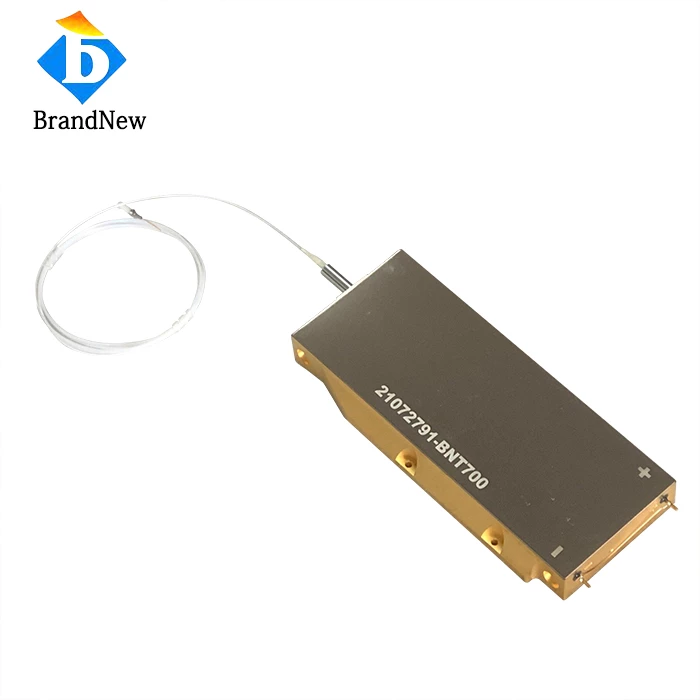

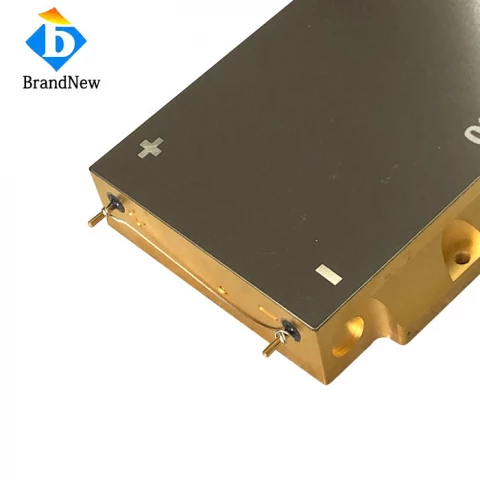

300W 808nm Fiber Coupled Diode Laser
Description

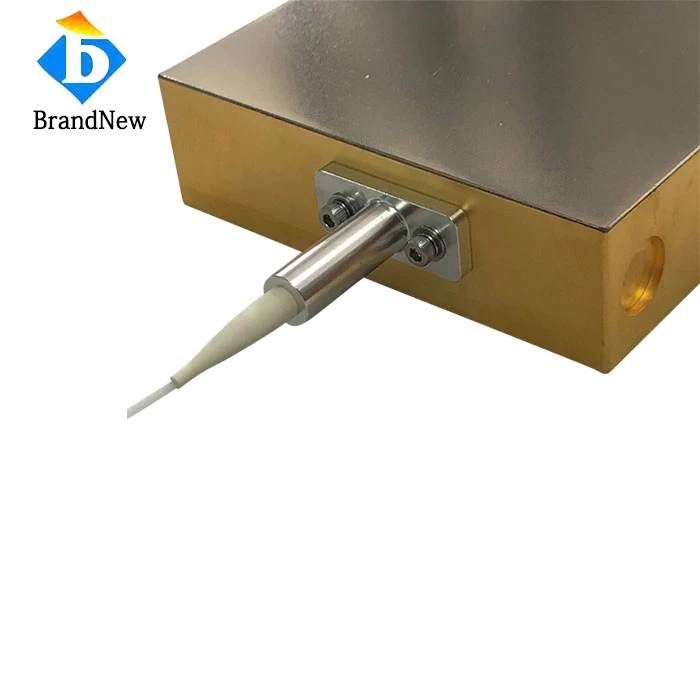

These high power fiber coupled laser diodes offer up to 300 Watts of CW optical output power into a 200 micrometer fiber pigtail. These devices are based on a high reliability multi-single emitter design. Their multi-single emitter based design delivers very good heat dissipation through the package which leads to excellent thermal performance over a long lifetime. Advanced processes for coupling efficiency allows these modules to deliver up to 95% of their output power within 0.17 NA. They ship with 1.5 meter (typ) unterminated fiber pigtail. A Peliter and Fan cooled customized heat sink is avalable for this laser. Also, pre-configured current source and temperature controller modules are available to connect to the heat sink unit.
300W 808nm Fiber Coupled Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 300000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Fiber Core: | 200 um |
| Fiber Length: | 1 M |
| Fiber Numerical Aperture: | 0.22 NA |
| Fiber Connector: | Bare end |
| Threshold Current: | 1.5 A |
| Operating Current: | 11 A |
| Operating Voltage: | 120 V |
| Operating Temp.: | 15~35 ℃ |
| Storage Temp.: | -20~70 ℃ |
| Wave Temp. Coefficient: | ～0.3 nm/℃ |
Features
- Highest power at 808nm: 300W
- Fiber-Coupled
- NA: 0.22
- 1020nm~1200nm Feedback Protection
- Unique solution for the fiber-coupled pump-laser market
- Offering powerful technical attributes in a cost-effective package.
Applications
- Fiber laser pumping
- Solid-state laser pumping
- Direct diode material processing
- Scientific Research
- Material Processing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
The output power of the laser is 300 Watts.
The numerical aperture of the fiber is 0.22 NA.
The typical center wavelength of the laser is 808nm±15nm.
The fiber pigtail has a length of 1.5 meters.
This laser is suitable for fiber laser pumping, solid-state laser pumping, direct diode material processing, scientific research, and material processing.
