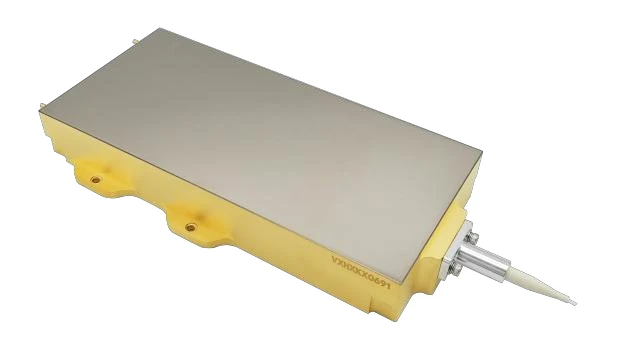

300W 976nm 135μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 300W 976nm Fiber-Coupled Diode Laser (GK-WS976300135) is engineered for high-power industrial and medical applications. It offers exceptional performance with a maximum output power of 300W, making it suitable for precision material processing, laser pumping, and medical procedures. The laser’s center wavelength of 976nm is wavelength-stabilized for consistent output, ensuring reliable performance in demanding environments.
The laser is designed with a fiber-coupled output, using a 135μm core fiber with a numerical aperture (NA) of 0.22. This configuration provides excellent beam quality and efficient power delivery. Additionally, the laser features a spectral width (FWHM) of 1.0nm, ensuring a narrow, well-defined wavelength range for optimal performance.
Operating with a typical voltage of 44V and a conversion efficiency of up to 45%, this diode laser delivers energy-efficient performance while maintaining stable output. Its compact, rugged design, coupled with a 2-meter pigtail fiber, allows easy integration into various industrial setups.
300W 976nm 135μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 300000 mW |
| Fiber Core Diamater: | 135 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | W 300 |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:133.5 Typ:135 Max:136.5 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Operating Current: | 15.5 A |
| Operating Voltage: | 44.0 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:7.0 Max:15.0 A |
Features
- High Power Output: Delivers up to 300W of optical power for demanding industrial and medical applications
- Center Wavelength: Operates at a stabilized wavelength of 976nm for consistent and reliable performance
- Fiber-Coupled Design: Equipped with a 135μm core fiber and a numerical aperture (NA) of 0.22, ensuring efficient power delivery
- Narrow Spectral Width: Features a full-width half-maximum (FWHM) spectral width of 1.0nm for precise wavelength control
- High Conversion Efficiency: Offers up to 45% conversion efficiency, optimizing energy usage
- Stable Operation: Typical operating voltage of 44V ensures smooth and stable performance
- Flexible Pigtail Length: Comes with a 2-meter pigtail fiber for easy system integration
Applications
- Laser Pumping: Provides precise wavelength control and high power for laser pumping applications
- Material Processing: Ideal for industrial processes like cutting, welding, and engraving
- Medical Procedures: Suitable for high-precision medical laser applications requiring stable performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 300W, suitable for high-power industrial and medical applications.
The center wavelength is 976nm, and it is wavelength-stabilized for consistent performance.
The fiber has a core diameter of 135μm, ensuring efficient power delivery.
The numerical aperture (NA) is 0.22, providing excellent beam quality and focus ability.
The laser has a spectral width (FWHM) of 1.0nm, offering precise wavelength control.
The laser comes with a 2-meter fiber pigtail, allowing for flexible integration into different systems.
The typical operating voltage is 44V, ensuring stable performance during operation.
What is the conversion efficiency of this diode laser? The laser offers a conversion efficiency of up to 45%, making it energy-efficient for high-power applications.
This laser is ideal for laser pumping, industrial material processing (such as cutting and welding), and medical procedures requiring precision.
Yes, the wavelength is stabilized at 976nm, ensuring consistent output for critical applications.
