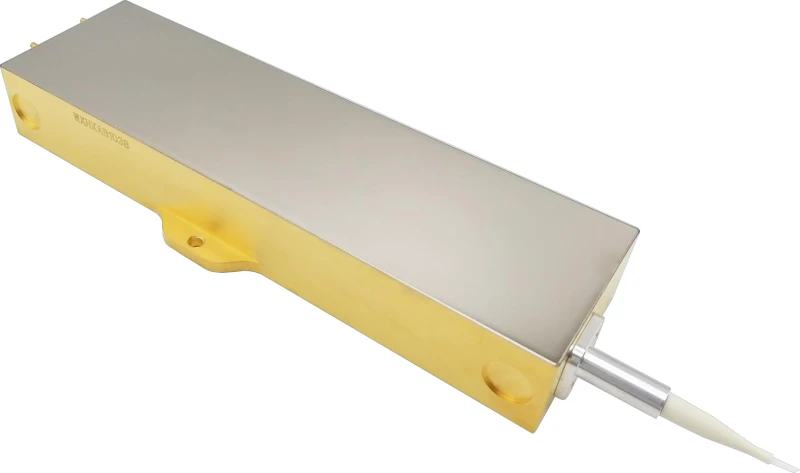

320W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 320W 976nm Fiber Coupled Power Diode Laser is a high-performance, industrial-grade laser designed for precision applications such as laser pumping, material processing, and medical treatments. Offering a maximum output power of 320W and a center wavelength of 976nm, this laser delivers stable and efficient power for demanding environments.
The device features a fiber core diameter of 200μm, ensuring precise beam delivery and high optical power coupling. With a numerical aperture of 0.22 and a pigtail length of 1.5 meters, this fiber-coupled laser provides excellent optical performance and flexibility for integration into various systems.
The diode laser operates at a typical current of 26A and a typical voltage of 2.0V, delivering up to 48% conversion efficiency, making it energy-efficient and reliable for continuous operation. Its robust design and high-power handling capabilities make it ideal for use in both research and industrial applications.
This laser is suitable for use in environments requiring high power, precision, and stable operation across a range of operating conditions. The fiber-coupled configuration offers enhanced safety, flexibility, and ease of installation in high-performance laser systems.
320W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 320000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 320 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.18 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 26.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Power Output: Delivers up to 320W for robust industrial and research applications
- Precision Wavelength: Center wavelength of 976nm for optimized performance in laser pumping and material processing
- Large Core Diameter: 200μm core fiber ensures precise power delivery and high optical coupling efficiency
- Flexible Pigtail Length: 1.5-meter pigtail for easy integration into a wide range of systems
- High Conversion Efficiency: Provides up to 48% efficiency, optimizing energy use and reducing operational costs
- Stable Performance: Operates with a typical current of 26A and a voltage of 2.0V for consistent performance
Applications
- Laser Pumping Systems: Ideal for high-power laser pumping applications in industrial environments
- Material Processing: Suitable for cutting, welding, and engraving, providing precision and power
- Medical Treatments: Used in laser-based medical devices for surgeries and treatments
- Research and Development: Supports experimental setups requiring high power and stable optical performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The diode laser has a maximum output power of 320W.
The center wavelength is 976nm, with a typical range from 973nm to 979nm.
The fiber has a core diameter of 200μm, providing high optical coupling efficiency.
The numerical aperture is 0.22, ensuring precise beam delivery.
The typical operating current is 26A, and the typical voltage is 2.0V.
The pigtail length is 1.5 meters, allowing for easy integration into systems.
The diode laser has a typical conversion efficiency of 48%, optimizing energy use.
This laser is suitable for laser pumping systems, material processing, medical treatments, and research applications.
The fiber coupled configuration can handle up to 320W of power, ensuring robust performance in high-power applications.
Yes, the laser is designed for stable and consistent performance with a typical current of 26A and voltage of 2.0V.
