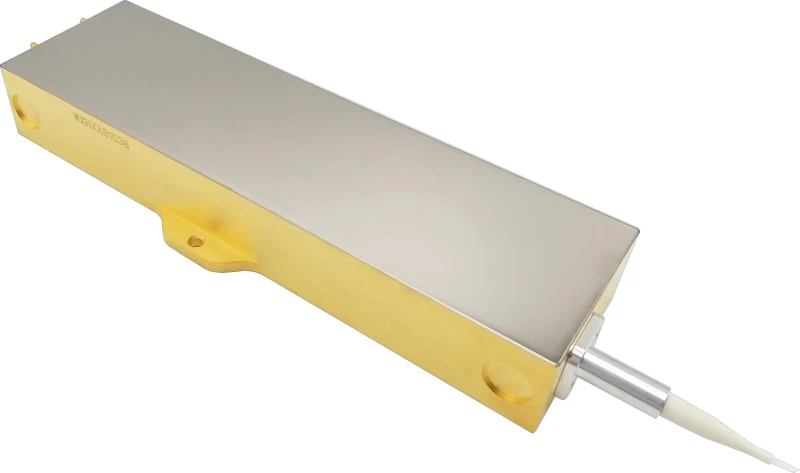

340W 976nm 135μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 340W 976nm 135μm Fiber Coupled Power Diode Laser (GK-976340135) is designed for high-performance applications requiring reliable and efficient optical power delivery. With an output power of up to 340W, this diode laser operates at a center wavelength of 976nm, making it ideal for demanding industrial, medical, and scientific tasks. The laser features a fiber core diameter of 135μm and a numerical aperture of 0.22, ensuring precise beam delivery and optimal coupling efficiency.
The diode laser is equipped with a pigtail length of 1.5 meters, offering flexibility in installation and integration into various systems. Its robust design supports stable performance in diverse environments, making it suitable for applications such as laser pumping, material processing, medical treatments, and advanced scientific research. The laser operates with high efficiency, achieving up to 48% conversion efficiency and a typical operating current of 32A.
This laser is engineered for precision and durability, ensuring minimal signal loss and high-power handling capabilities, making it a key tool for high-power optical applications.
340W 976nm 135μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 340000 mW |
| Fiber Core Diamater: | 135 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 340 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.18 - |
| Core Diameter: | Min:133.5 Typ:135.0 Max:136.5 μm |
| Numerical Aperture: | Min:0.215 Typ:0.220 Max:0.225 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 25.0 A |
| Operating Voltage: | 32.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers a maximum output power of 340W, ideal for high-performance applications
- Center Wavelength: Operates at 976nm for optimized performance in industrial and medical tasks
- 135μm Core Diameter: Provides precise beam delivery with a 135μm fiber core diameter
- Numerical Aperture: Features a numerical aperture of 0.22 for efficient optical coupling
- High Conversion Efficiency: Achieves up to 48% conversion efficiency, ensuring power efficiency
- 1.5m Pigtail Length: Allows for flexible integration and easy installation
Applications
- Laser Pumping: Efficient for pumping solid-state and fiber lasers
- Material Processing: Suitable for cutting, welding, and surface treatment in industrial settings
- Medical Procedures: Utilized in high-precision surgical and therapeutic applications
- Scientific Research: Supports advanced research in optics and photonics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The diode laser delivers a maximum output power of 340W, making it suitable for high-performance applications.
The laser operates at a center wavelength of 976nm, with a typical wavelength range between 973nm and 979nm.
The fiber core diameter is 135μm, ensuring precise beam delivery and optimal coupling efficiency.
The fiber has a numerical aperture of 0.22, allowing for efficient optical coupling.
The pigtail length is 1.5 meters, providing flexibility in installation and system integration.
The typical operating current is 32A, and the operating voltage is around 2.0V.
The laser achieves a high conversion efficiency of up to 48%, optimizing power usage.
The laser is ideal for applications such as laser pumping, material processing, medical procedures, and scientific research.
The 135μm fiber core and 0.22 NA ensure high beam quality, suitable for precise and high-power applications.
Yes, the fiber-coupled design and 1.5m pigtail length allow for easy integration into various optical and photonic systems.
