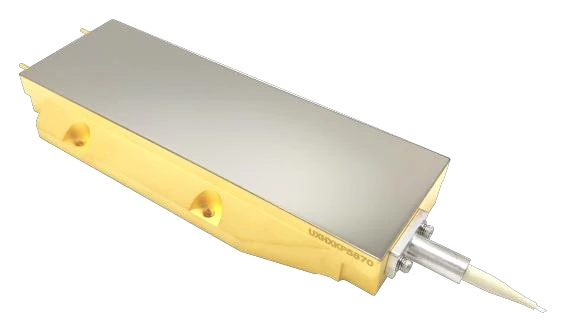

350W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 350W 976nm 200μm Fiber Coupled Power Diode Laser offers high performance and efficiency for a variety of demanding industrial and research applications. With a maximum output power of 350W and a center wavelength of 976nm, this laser is designed for applications requiring high power and precision. The 200μm core diameter fiber ensures excellent beam quality, while the 0.22 numerical aperture (NA) provides reliable beam delivery.
Engineered for efficiency, the diode laser operates with a typical current of 26.5A and a voltage of 2.0V, achieving a conversion efficiency of 48%. The laser's 1.5-meter fiber pigtail makes integration into existing systems straightforward, while its robust construction ensures stable performance even in continuous operation.
Ideal for applications such as laser pumping, material processing, and medical procedures, this high-power fiber-coupled diode laser offers both reliability and flexibility. With its high efficiency and fiber delivery, it is a perfect solution for high-precision work in various fields.
350W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 350000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 350 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 - |
| Operating Current: | 26.5 A |
| Operating Voltage: | 31.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Capable of delivering up to 350W of output power, suitable for high-demand applications
- Center Wavelength of 976nm: Optimized for efficient performance across a range of applications
- 200μm Core Diameter: Ensures excellent beam quality and coupling efficiency
- Numerical Aperture (NA) of 0.22: Provides precise and reliable beam delivery
- High Conversion Efficiency: Achieves a typical conversion efficiency of 48%, ensuring energy-efficient operation
- Operating Current and Voltage: Operates at 26.5A and 2.0V, providing stable and consistent performance
- 1.5m Pigtail Length: Allows for easy integration into existing systems
Applications
- Laser Pumping Systems
- Material Processing
- Medical Laser Treatments
- Research and Development Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 350W, making it suitable for high-demand applications.
The laser operates at a center wavelength of 976nm, ideal for various industrial and research applications.
The fiber core diameter is 200μm, ensuring excellent beam quality and efficiency.
The numerical aperture of the fiber is 0.22, providing precise beam delivery.
The pigtail fiber length is 1.5 meters, allowing for easy integration into different systems.
The laser operates at a typical current of 26.5A and a voltage of 2.0V.
The conversion efficiency of the laser is typically 48%, ensuring energy-efficient operation.
This laser is ideal for laser pumping systems, material processing, medical treatments, and research applications.
Yes, the laser is designed for stable performance in continuous operation.
The numerical aperture ranges from 0.20 to 0.24, ensuring reliable performance across different beam delivery needs.
