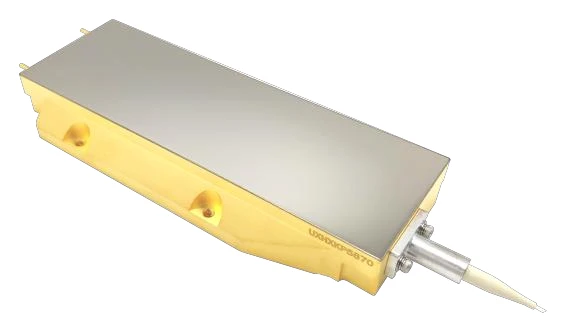

380W 915nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 380W 915nm 200μm Fiber Coupled Power Diode Laser (GK-915380200) is a high-power laser solution designed for industrial, medical, and scientific applications. Featuring an impressive output power of 380W, this laser operates at a center wavelength of 915nm, making it suitable for a wide range of high-demand applications such as laser pumping, material processing, and medical treatments. Its fiber coupling system ensures efficient beam delivery through a 200μm core diameter fiber with a numerical aperture (NA) of 0.22.
This robust laser system is designed for continuous, reliable performance, even in challenging environments, with a conversion efficiency of 48%.
The GK-915380200 is equipped with a pigtail length of 1.5 meters for flexible integration into various setups. Its operating current of 26.5A and typical operating voltage of 2.0V provide energy-efficient functionality, while its beam quality and precision make it an ideal solution for tasks requiring high power and precision.
The laser is highly adaptable for advanced laser systems, ensuring consistent and stable performance across various applications.
380W 915nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 380000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 380 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 32.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 380W of power for demanding applications
- Center Wavelength: Operates at 915nm, suitable for a wide range of applications
- 200μm Fiber Core: Ensures efficient beam delivery and high precision
- Numerical Aperture: 0.22 NA for optimized beam focusing
- Pigtail Length: 1.5m for easy integration into various setups
- High Efficiency: Conversion efficiency of up to 48%, maximizing energy savings
- Stable Operation: Designed for continuous operation with stable performance
Applications
- Laser Pumping Systems: Supports efficient pumping in high-power laser systems
- Material Processing: Ideal for precision cutting, welding, and marking
- Medical Treatments: Suitable for laser-based medical therapies and surgeries
- Research and Development: Excellent for experimental setups and optical research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides a maximum output power of 380W, suitable for high-power applications.
The center wavelength is 915nm, ideal for applications such as laser pumping and material processing.
The fiber core diameter is 200μm, allowing for precise beam delivery.
The numerical aperture is 0.22, optimized for focused beam delivery and efficient performance.
The laser comes with a 1.5-meter pigtail for easy integration into different setups.
The typical operating current is 26.5A, supporting stable laser operation.
The typical operating voltage is 2.0V, ensuring energy-efficient operation.
The laser has a conversion efficiency of 48%, maximizing energy savings and operational efficiency.
It is suitable for laser pumping systems, material processing, medical treatments, and research.
The wavelength range is from 900nm to 930nm, with a typical wavelength of 915nm.
