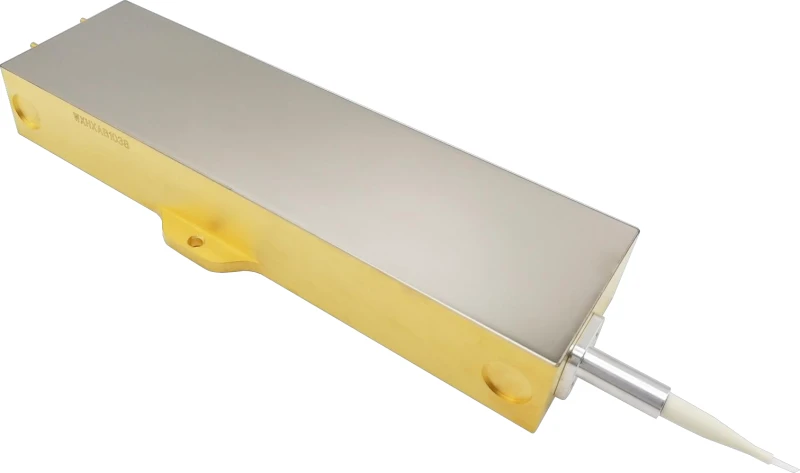

380W 976nm 135μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 380W 976nm 135μm Fiber Coupled Power Diode Laser (GK-976380135) is designed for high-performance applications, offering reliable and efficient laser output with a maximum power of 380W. Operating at a center wavelength of 976nm, this diode laser is ideal for demanding tasks in material processing, laser pumping, medical treatments, and scientific research. The laser's high beam quality is ensured by the 135μm core diameter and 0.22 numerical aperture (NA) fiber, which allows for precise beam delivery and efficient power coupling.
With a 1.5-meter fiber pigtail, the device is easy to integrate into existing systems and offers flexibility in installation. Its high conversion efficiency of up to 48% optimizes power usage, while the robust design ensures excellent performance even in challenging environments. The typical operating current of 35A and voltage of 2.0V make this laser a reliable solution for a range of industrial, medical, and research applications.
380W 976nm 135μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 380000 mW |
| Fiber Core Diamater: | 135 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 380 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.185 - |
| Core Diameter: | Min:133.5 Typ:135.0 Max:136.5 μm |
| Numerical Aperture: | Min:0.215 Typ:0.220 Max:0.225 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 25.0 A |
| Operating Voltage: | 35.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 380W for demanding laser applications
- Center Wavelength of 976nm: Ideal for laser pumping and material processing
- 135μm Core Diameter: Ensures precise beam delivery and efficient coupling
- 0.22 Numerical Aperture (NA): Enhances optical performance and coupling efficiency
- 1.5m Fiber Pigtail: Provides flexibility and ease of integration into various systems
- High Conversion Efficiency: Achieves up to 48%, optimizing power usage
- Stable Operating Conditions: Reliable performance with typical operating current of 35A and voltage of 2.0V
Applications
- Laser Pumping Systems: Ideal for powering solid-state lasers and other high-power systems
- Material Processing: Suitable for cutting, welding, and other industrial processes
- Medical Procedures: Precise laser output for medical treatments and surgeries
- Scientific Research: Supports advanced research requiring high-power laser sources
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 380W, making it suitable for high-performance applications.
The center wavelength is 976nm, optimized for laser pumping and material processing applications.
The fiber has a core diameter of 135μm, ensuring precise beam delivery and efficient power coupling.
The numerical aperture is 0.22, enhancing the optical performance and coupling efficiency.
The pigtail length is 1.5 meters, offering flexibility for integration into different systems.
The typical operating current is 35A, providing stable performance under normal operating conditions.
The typical operating voltage is 2.0V.
The conversion efficiency is up to 48%, optimizing power usage for energy-efficient performance.
It is primarily used in laser pumping systems, material processing, medical treatments, and research.
Yes, its high power output and stability make it ideal for demanding industrial processes.
