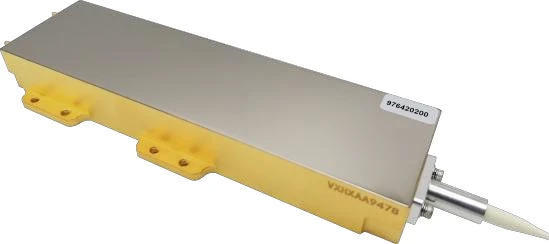

420W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics GK-976420200 is a high-performance fiber-coupled power diode laser designed to deliver exceptional output power and efficiency. With a maximum output power of 420W and a center wavelength of 976nm, this laser is optimized for demanding applications that require robust and reliable performance. The laser features a core diameter of 200μm, providing precise beam delivery and enabling efficient coupling into various optical systems.
Built with advanced fiber technology, the GK-976420200 ensures high numerical aperture (NA) of 0.22 and a conversion efficiency of 48%, making it ideal for applications that demand high power with excellent beam quality. The device operates with a typical current of 26.5A and a voltage of 2.0V, offering stability and longevity. Additionally, the laser’s pigtail length of 1.5 meters provides flexibility in integration with existing setups.
This diode laser is suited for applications in industrial material processing, medical laser systems, and scientific research, where high output power and reliable operation are crucial. Its advanced design and high performance make it a versatile choice for a range of demanding tasks.
420W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 420000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 420 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 32.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Provides up to 420W of power for demanding applications
- Center Wavelength: Operates at 976nm, ideal for various high-power tasks
- Large Core Diameter: Features a 200μm core for efficient beam delivery
- High Numerical Aperture: NA of 0.22 ensures effective beam focusing and coupling
- High Conversion Efficiency: Achieves 48% efficiency for optimal energy use
- Stable Operation: Operates with a typical current of 26.5A and voltage of 2.0V
- Flexible Integration: Includes a 1.5-meter pigtail length for versatile setup options
Applications
- Industrial Material Processing: Ideal for high-power applications in cutting, welding, and engraving
- Medical Laser Systems: Suitable for use in various medical and surgical procedures
- Scientific Research: Provides precise and high-power laser output for experimental setups
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 420W.
The center wavelength is 976nm.
The core diameter is 200μm.
The numerical aperture is 0.22.
The conversion efficiency is 48%.
The typical operating current is 26.5A, and the voltage is 2.0V.
The pigtail length is 1.5 meters.
This laser is suitable for industrial material processing, medical laser systems, and scientific research.
The high numerical aperture allows for effective beam focusing and coupling.
A larger core diameter provides efficient beam delivery and coupling into optical systems.
