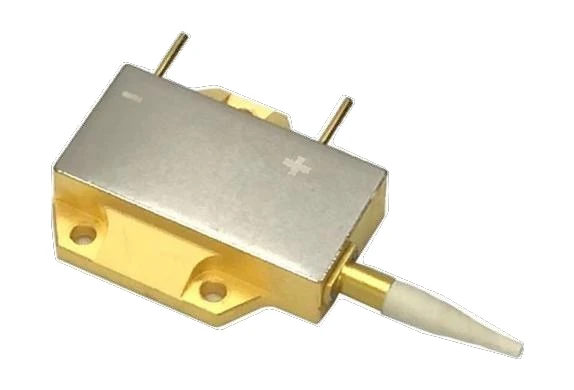

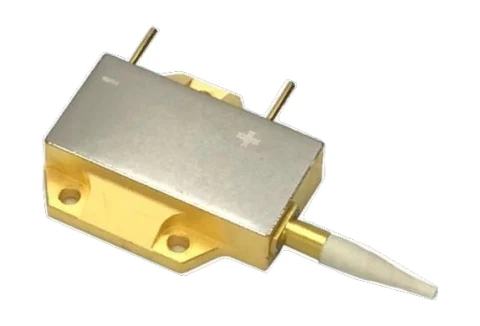

45W 915nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 45W 915nm 105μm Fiber Coupled Power Diode Laser (GK-915V45105) is a high-performance laser module designed for precision optical applications. With a maximum output power of 45 watts and a center wavelength of 915nm, this laser offers superior power and reliability for a wide range of industrial, medical, and research uses. The laser’s compact design, coupled with a robust 105μm fiber core, ensures efficient power delivery while maintaining optimal beam quality.
Engineered for efficiency, this laser module boasts a 95% power Numerical Aperture (NA) of 0.20, ensuring minimal signal loss and maximum output precision. The fiber-coupled design provides stable performance, even in demanding operational environments. The pigtail fiber is designed with a core diameter of 105μm and a numerical aperture of 0.22, making it ideal for applications requiring focused, high-powered light.
Whether you are involved in material processing, medical applications, or precision measurement systems, the GK-915V45105 offers high reliability, low maintenance, and seamless integration with various optical systems. Its high efficiency and stable wavelength performance make it a dependable choice for demanding environments.
45W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 45000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 45 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.0 Typ:1.2 m |
| Operating Current: | 18.5 A |
| Operating Voltage: | 5.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 45W of output power for robust applications
- Center Wavelength: Stable 915nm wavelength ensures consistent performance across applications
- 95% Power Numerical Aperture (NA): Offers a 0.20 NA for precise beam quality and power distribution
- Compact Fiber Coupled Design: Integrates a 105μm core fiber for efficient light transmission
- High Conversion Efficiency: Designed for optimal energy use with a conversion efficiency up to 18.5%
- Wide Operating Voltage Range: Operates efficiently with a voltage range of 1.0 to 5.5V
Applications
- Industrial Material Processing: Suitable for cutting, welding, and surface treatments requiring high-powered lasers
- Medical Treatments: Used in surgical and therapeutic procedures requiring focused laser energy
- Research and Development: Ideal for laboratories and institutions requiring precise wavelength performance
- Optical Communication Systems: Supports fiber-optic networks requiring high power and reliable performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser has a maximum output power of 45W.
The center wavelength is 915nm, with a range between 900nm and 930nm.
The fiber core diameter is 105μm.
The 95% Power NA is 0.20, ensuring focused beam quality.
he typical operating voltage is between 1.0V and 5.5V.
This laser is ideal for industrial material processing, medical treatments, and optical communications.
The pigtail length is typically 1.2 meters.
The typical conversion efficiency is around 18.5%.
The maximum operating current is 18.5A.
The fiber's numerical aperture is 0.22, providing efficient light transmission.
