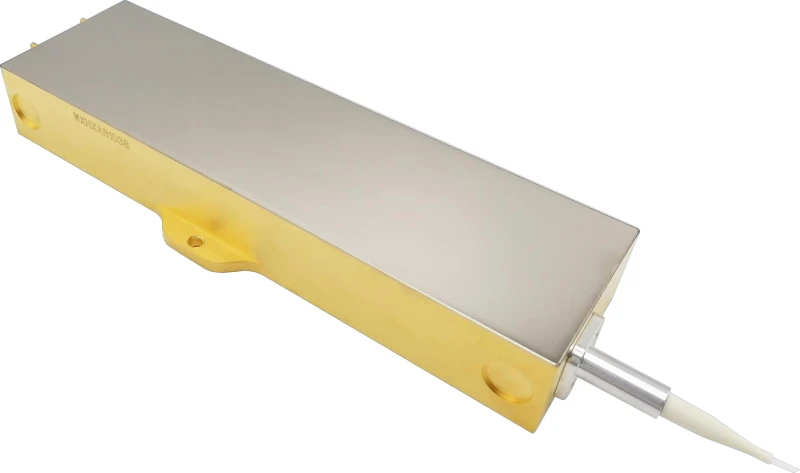

480W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics GK-976Q480200 is a high-performance fiber-coupled power diode laser designed for demanding industrial and scientific applications. With an impressive output power of 480W and a center wavelength of 976 nm, this laser provides exceptional reliability and efficiency. The laser's 200μm core diameter and advanced numerical aperture (NA) of 0.20 ensure optimal beam quality and coupling efficiency, making it suitable for high-precision tasks.
Featuring a high conversion efficiency, this diode laser is capable of delivering substantial power while maintaining a compact form factor. It operates with a minimal typical operating current of 1.5A and voltage of 2.0V, ensuring energy efficiency. The robust fiber parameters, including a core diameter of 200μm and NA of 0.22, contribute to stable performance across a wide range of applications.
The GK-976Q480200 also includes a pigtail length optimized for flexibility in integration and system design. This laser is ideal for use in laser cutting, material processing, and advanced optical applications where high power and precision are essential.
480W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 480000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 480 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 39.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 480W of optical power for demanding applications
- Center Wavelength: Operates at a stable wavelength of 976 nm for optimal performance
- High Conversion Efficiency: Ensures effective power conversion with a typical efficiency of 39.0%
- Advanced Fiber Parameters: Features a 200μm core diameter and numerical aperture of 0.22
- Low Operating Current and Voltage: Requires a minimal operating current of 1.5A and voltage of 2.0V
- Stable Performance: Maintains consistent output with minimal variation
Applications
- Laser Cutting and Welding: Ideal for high-precision material processing and fabrication
- Material Processing: Suitable for applications requiring high power and beam quality
- Scientific Research: Provides reliable performance for advanced optical experiments
- Medical Laser Systems: Can be integrated into medical devices requiring high power and accuracy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 480 watts, providing high-performance capabilities for demanding applications.
The laser operates at a center wavelength of 976 nm, suitable for various optical applications and material processing.
The fiber has a core diameter of 200 μm, designed to handle high power with minimal signal loss.
The numerical aperture of the fiber is 0.22, which helps in determining the fiber's light gathering ability.
The typical conversion efficiency is 39.0%, indicating effective conversion of electrical power to optical output.
The laser typically operates at 1.5 amperes, ensuring stable and efficient performance.
The typical operating voltage is 2.0 volts, compatible with various power supply systems.
The fiber pigtail length is 1.5 meters, providing flexibility in system integration and installation.
This diode laser is ideal for high-power applications such as laser cutting, material processing, scientific research, and medical systems.
The typical fiber diameter is 200 μm, accommodating high power and minimizing signal loss.
