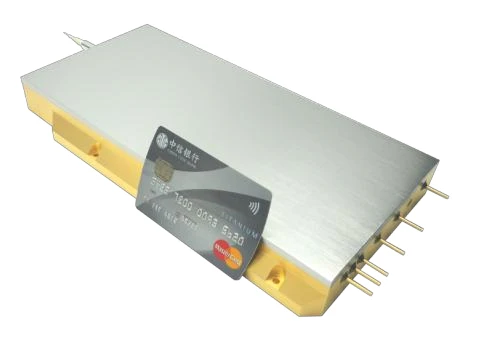

500W 915nm+980nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 500W 915nm+980nm 105μm Fiber Coupled Power Diode Laser (GK-9XX500106) is a high-power, dual-wavelength diode laser engineered for industrial and scientific applications requiring robust laser sources. This laser delivers up to 500 watts of combined output power at center wavelengths of 915 nm and 980 nm, making it ideal for applications requiring precise power delivery across multiple wavelength bands.
The fiber coupling is designed with a core diameter of 105μm and a numerical aperture of 0.22, ensuring high efficiency in light transmission. Its dual-wavelength capability, combined with a spectral power distribution of 95%, enhances performance for a wide range of applications such as material processing, fiber laser pumping, and medical treatments. The diode laser operates efficiently within a current range of 12.0 A to 13.0 A and a voltage range of 41.5 V to 45 V, with a high conversion efficiency of up to 43%.
The rugged and compact design ensures reliable performance under demanding conditions, while its wavelength stability and minimal spectral shift further enhance system integration. This laser is a versatile and efficient choice for industries requiring high-power and stable light sources.
500W 915nm+980nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915nm+980nm nm |
| Output Power: | 500000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 500 W |
| Center Wavelength: | 915nm+980 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:105 Typ:106.5 Max:108.0 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.8 Typ:2.0 m |
| Operating Current: | Typ:12.0×2 Max:13.0×2 A |
| Operating Voltage: | Typ:41.5×2 Max:43.0×2 V |
| Conversion Efficiency: | Min:43 Typ:45 % |
Features
- High Output Power: Delivers up to 500 watts of combined power at 915nm and 980nm wavelengths
- Dual-Wavelength Operation: Provides precise power delivery at 915 nm and 980 nm for versatile applications
- Fiber Coupling Diameter: Features a 105μm fiber core for efficient light transmission
- Numerical Aperture: Offers a numerical aperture of 0.22 for improved beam focus and control
- Wavelength Stability: Ensures stable output with minimal spectral shift
- High Conversion Efficiency: Achieves conversion efficiency of up to 43%
- Wide Current Range: Operates efficiently with a current range of 12.0 A to 13.0 A
- Compact Design: Optimized for integration into high-power laser systems
Applications
- Material Processing: Ideal for laser cutting, welding, and marking in industrial applications
- Fiber Laser Pumping: Suitable for high efficiency pumping in fiber laser systems
- Medical Laser Systems: Designed for use in medical applications requiring high-power and precise wavelength control
- Scientific Research: Useful in scientific applications that demand stable, high-power laser sources
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 500 watts.
The laser operates at 915 nm and 980 nm.
The core diameter of the fiber coupling is 105μm.
The numerical aperture is 0.22.
The conversion efficiency is up to 43%.
The operating current range is 12.0 A to 13.0 A.
The operating voltage range is 41.5 V to 45.0 V.
The laser maintains stable wavelengths with minimal shift.
The typical pigtail length is 2 meters.
