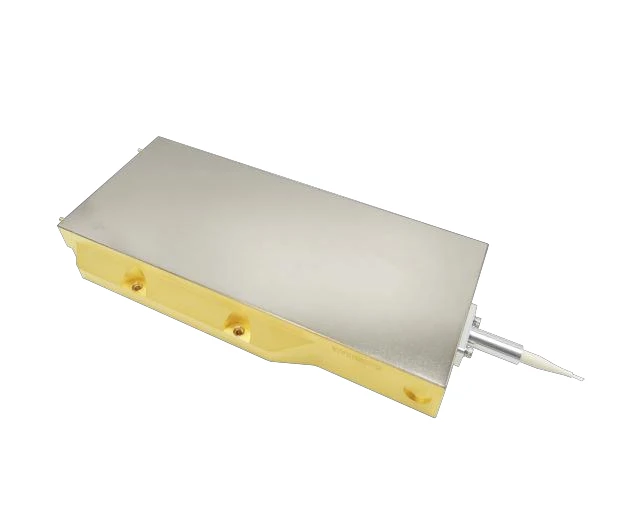

500W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics Co., Ltd 500W 976nm 200µm Fiber-Coupled Power Diode Laser is a high-performance, wavelength-stabilized laser system designed for a wide range of industrial and scientific applications. With a maximum output power of 500 watts and a center wavelength of 976nm, this diode laser delivers exceptional power and precision for demanding applications such as material processing, laser pumping, and medical treatments. The laser is coupled with a 200µm fiber, ensuring efficient energy transfer and precise beam delivery.
The laser offers excellent spectral performance with a full-width half-maximum (FWHM) spectral width of 1.0nm and 95% of the power concentrated in a numerical aperture (NA) of 0.22. This ensures minimal signal loss and optimized energy efficiency. The pigtail length of the fiber is 2 meters, providing flexibility in system integration.
Engineered for long-term reliability, this laser operates at a typical voltage of 52V and offers a conversion efficiency of up to 45%. The diode is designed for continuous operation with high stability, making it suitable for integration into complex optical systems. With a robust build and advanced fiber coupling, this laser is ideal for applications requiring high power and precision.
500W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 500000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 500 W |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.18 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Operating Current: | 20.0 A |
| Operating Voltage: | 52.0 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:10.0 Max: 20.0 A |
Features
- High Power Output: Provides up to 500W of optical power, ideal for high-demand applications
- Wavelength-Stabilized Design: Ensures precise wavelength output at 976nm for consistent performance
- Fiber Coupling: Equipped with 200µm core fiber, ensuring efficient power delivery and flexible integration
- Compact and Efficient: Offers high conversion efficiency of up to 45% for energy-saving operation
- Excellent Beam Quality: Maintains a spectral width (FWHM) of 1.0nm, with a narrow 0.22 NA for enhanced focus
Applications
- Material Processing: Suitable for laser cutting, welding, and surface treatments
- Laser Pumping: Ideal for pumping high-power laser systems in industrial and medical settings
- Medical Treatments: Supports precise medical procedures requiring controlled laser energy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides up to 500W of optical power, suitable for high-demand industrial and scientific applications.
The center wavelength is 976nm, with a wavelength-stabilized design for consistent performance.
The fiber has a core diameter of 200µm, ensuring efficient power delivery.
The fiber has a numerical aperture (NA) of 0.22, which helps maintain excellent beam quality and focus.
The pigtail fiber is 2 meters long, allowing flexibility in system integration.
The spectral width (full-width half-maximum) is 1.0nm, ensuring precise wavelength control.
The typical operating voltage is 52V, ensuring stable and efficient performance.
The conversion efficiency is up to 45%, optimizing energy use during operation.
This laser is ideal for material processing, laser pumping, and medical treatments.
