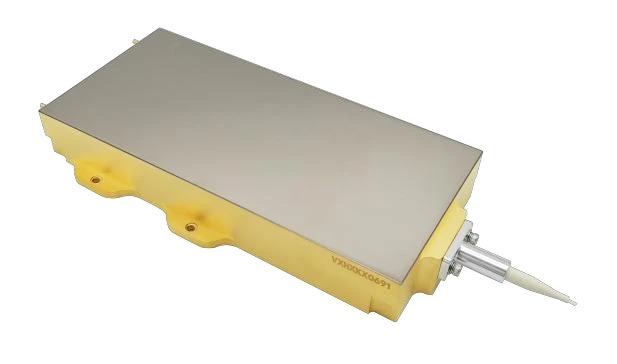

540W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics Co., Ltd 540W 976nm Fiber Coupled Power Diode Laser (GK-976540200) is an advanced high-power laser system designed for industrial applications requiring precision and reliability. With a maximum output power of 540W, this diode laser operates at a center wavelength of 976nm, making it ideal for fiber laser pumping, material processing, and other high-power applications.
This system features a fiber coupling output, utilizing a 200μm core diameter fiber with a numerical aperture (NA) of 0.22, ensuring efficient energy transmission and high optical performance. The diode laser offers a 95% power NA of 0.20, providing excellent beam quality and optimal output performance. The pigtail length of 1.5 meters provides flexibility for integration into various setups.
Designed for efficient energy conversion, the system achieves a typical conversion efficiency of 48%, making it highly efficient for demanding industrial environments. With robust performance at operating currents up to 26.5A and operating voltages as low as 45.5V, this diode laser is well-suited for continuous, high-power operations. Its compact and reliable design ensures long-term stability, even in challenging conditions.
Whether used in industrial cutting, welding, or fiber laser applications, the GKER 540W 976nm Fiber Coupled Power Diode Laser delivers excellent power, efficiency, and versatility for a wide range of industrial needs.
540W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 540000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 540 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 45.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers a maximum output power of 540W for high-performance industrial applications
- Precise Center Wavelength: Operates at a 976nm center wavelength for accurate and efficient power delivery
- Efficient Fiber Coupling: Equipped with a 200μm core diameter fiber for optimal energy transmission and high beam quality
- High Conversion Efficiency: Achieves a typical conversion efficiency of 48%, reducing energy consumption in high-power tasks
- Robust Electrical Performance: Operates at a current of up to 26.5A and a voltage of 45.5V for continuous, stable performance
- Versatile Fiber Output: Offers a 95% power numerical aperture (NA) of 0.20 for high-precision optical delivery
Applications
- Fiber Laser Pumping: Ideal for high-power fiber laser systems requiring efficient energy transfer
- Industrial Material Processing: Suitable for cutting, welding, and other high-precision material processing tasks
- Medical Applications: Applicable in medical devices requiring precise and powerful laser sources
- Scientific Research: Useful for research applications needing high optical power with stable performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power of the laser is 540W.
The center wavelength is 976nm, with a typical range between 973nm and 979nm.
The fiber core diameter is 200μm.
The numerical aperture (NA) is 0.22, with a 95% power NA of 0.20.
The typical conversion efficiency is 48%.
The operating current is up to 26.5A, and the operating voltage is 45.5V.
The pigtail length is 1.5 meters.
Typical applications include fiber laser pumping, industrial material processing, medical devices, and scientific research.
The laser provides excellent beam quality with a 95% power NA of 0.20.
Yes, it is designed for continuous high-power operations in industrial environments.
