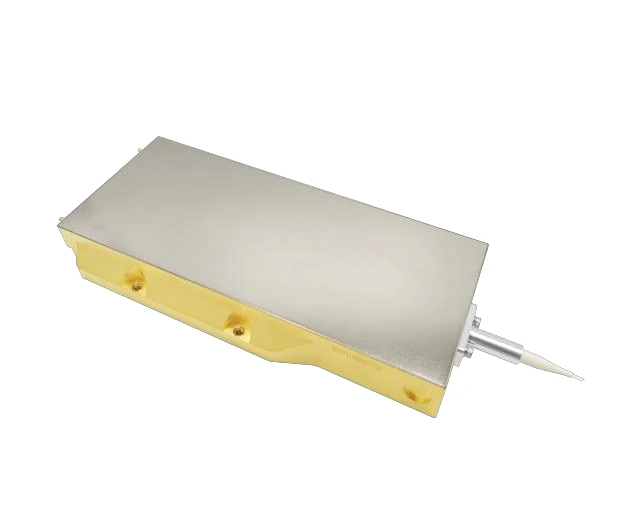

620W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics Co., Ltd 620W 976nm Fiber Coupled Power Diode Laser (GK-976620200) offers high optical power and superior performance for a wide range of industrial and scientific applications. This high-power diode laser delivers a maximum output power of 620W, operating at a center wavelength of 976nm, which is ideal for applications such as fiber laser pumping, materials processing, and medical devices.
Designed with a 200μm core diameter fiber and a numerical aperture (NA) of 0.22, the laser provides excellent beam quality and efficient energy delivery. The system offers a 95% power NA of 0.20, ensuring precision and stability in high-demand environments. The pigtail length of 1.5 meters allows flexibility in setup and integration.
This diode laser boasts a typical conversion efficiency of 48%, enabling reduced energy consumption in demanding applications. It operates efficiently at a maximum current of 26.5A and a voltage of 51.0V, making it suitable for continuous operation in high-power tasks.
With its robust design and reliable performance, the GKER 620W 976nm Fiber Coupled Power Diode Laser is an excellent choice for various industries, providing the power, precision, and efficiency needed to meet the challenges of modern applications.
620W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 620000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 620 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.18 NA |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 NA |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 51.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Provides a maximum output power of 620W for demanding industrial tasks
- Precise Center Wavelength: Operates at a 976nm center wavelength for accurate energy delivery
- Efficient Fiber Coupling: Features a 200μm core diameter fiber with a numerical aperture (NA) of 0.22 for optimal energy transmission
- High Conversion Efficiency: Achieves a typical conversion efficiency of 48%, reducing operational energy requirements
- Robust Electrical Performance: Operates at a current of up to 26.5A and a voltage of 51.0V, ensuring stability during continuous high-power use
- Versatile Fiber Output: Offers a 95% power NA of 0.20, delivering excellent beam quality for precision applications
Applications
- Fiber Laser Pumping: Perfect for high-power fiber laser systems that require efficient energy transfer
- Industrial Material Processing: Ideal for cutting, welding, and other precision industrial processes
- Medical Devices: Suitable for medical applications requiring precise laser sources with high power
- Scientific Research: Supports research projects requiring high-performance lasers with stable operation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 620W.
The center wavelength is 976nm, with a typical range between 973nm and 979nm.
The fiber core diameter is 200μm.
The numerical aperture (NA) is 0.22, with a 95% power NA of 0.20.
The typical conversion efficiency is 48%.
The operating current is up to 26.5A, and the operating voltage is 51.0V.
The pigtail length is 1.5 meters.
Typical applications include fiber laser pumping, industrial material processing, medical devices, and scientific research.
The laser provides excellent beam quality with a 95% power NA of 0.20.
Yes, it is designed for continuous high-power operation in industrial environments.
