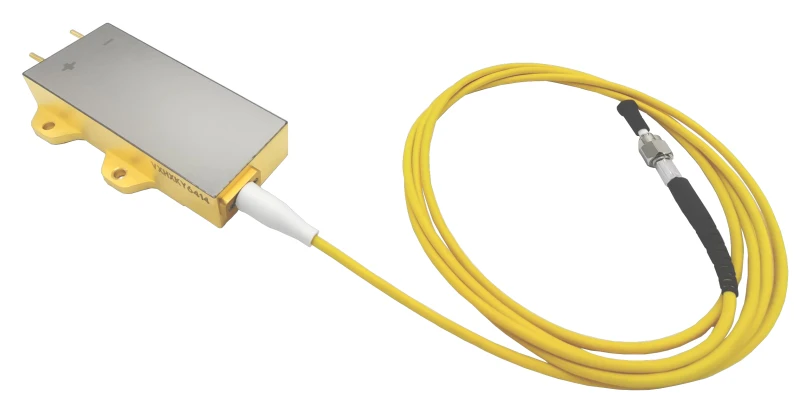

65W 808nm 200μm Fiber Coupled Power Diode Laser
Description
The 65W 808nm Fiber Coupled Power Diode Laser from GKER Photonics Co., Ltd. is a high-performance laser solution designed for a variety of industrial, medical, and scientific applications. Offering a center wavelength of 808nm with a maximum output power of 65W, this diode laser delivers reliable and stable optical performance. The laser's spectral width of 4nm ensures narrow, consistent output for precision-based applications. With a fiber core diameter of 200μm and a numerical aperture (NA) of 0.22, this system ensures efficient light transmission with minimal loss, making it ideal for demanding tasks.
The laser is equipped with SC/SMA905 connectors and a 2-meter pigtail, providing flexibility for integration into various setups. Designed for continuous-wave (CW) operation, it operates efficiently at a typical current of 10.0A and voltage of 48V, achieving a conversion efficiency of up to 24%. This fiber-coupled diode laser is commonly used in laser pumping, medical treatments like hair removal, and precision material processing, offering high stability and environmental adaptability.
65W 808nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 65000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 65 W |
| Center Wavelength: | 808 nm |
| Spectral Width(FWHM): | 4 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 10.0 A |
| Operating Voltage: | 15.5 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: 65W output suitable for a wide range of industrial and medical applications
- Center Wavelength: 808nm with a spectral width (FWHM) of 4nm for stable and precise operation
- Fiber Coupling: 200μm core diameter fiber with 0.22 NA for efficient light transmission
- Reliable Connectors: SC/SMA905 connectors for secure and adaptable integration
- Efficient Operation: Typical operating current of 10.0A and voltage of 48V with 24% conversion efficiency
- Flexible Pigtail Length: 2-meter fiber pigtail for ease of installation and flexibility
Applications
- Laser Pumping: Ideal for use in solid-state laser systems, providing reliable energy input
- Medical Treatments: Suitable for hair removal, phototherapy, and other cosmetic or therapeutic uses
- Material Processing: Perfect for precision tasks such as cutting, engraving, and surface treatments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser offers a maximum output power of 65 watts, providing high-intensity light suitable for demanding applications.
This diode laser operates at a center wavelength of 808 nanometers, ideal for various biomedical and industrial uses.
The spectral width, measured as full width at half maximum (FWHM), is 4 nanometers, which contributes to its fine wavelength stability.
The numerical aperture (NA) of the fiber is 0.22, which helps in determining the light collection and transmission efficiency.
The fiber core diameter is 200 micrometers, allowing for efficient coupling and delivery of laser light.
The laser is equipped with SC/SMA905 connectors, providing compatibility with standard optical systems.
The typical operating current is 10.0 amps, which ensures optimal performance and stability of the laser.
The laser operates at a voltage of 48 volts, essential for its functioning and maintaining efficient output.
The conversion efficiency of this diode laser is up to 24%, indicating how effectively electrical power is converted into optical output.
The pigtail length is 2.0 meters, providing flexibility in system integration and positioning.
