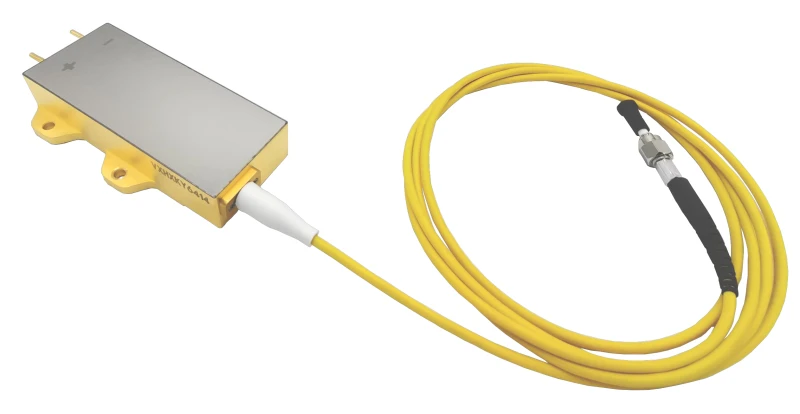

65W 878.6nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 65W 878.6nm 200μm Fiber Coupled Power Diode Laser (GK-WS878065200S) offers high optical performance, tailored for precision applications across industrial, scientific, and medical fields. With a stabilized center wavelength of 878.6nm and a maximum optical output power of 65W, this laser is designed for reliable and consistent performance under demanding conditions.
The fiber-coupled design, featuring a 200μm core diameter and a numerical aperture (NA) of 0.22, ensures efficient power transmission with minimal signal loss. The laser operates with a spectral width of just 1.0nm (FWHM), maintaining a narrow beam for precise applications such as solid-state laser pumping and materials processing. Additionally, the power conversion efficiency is 48%, allowing for energy-efficient operation at a typical operating voltage of 7.5V and current range of 5A to 10A.
With robust construction and an SC/SMA905 connector, this laser is built for easy integration into complex systems and offers reliable performance in harsh environments. It is ideal for a variety of applications, including industrial processing, laser therapy, and scientific research.
65W 878.6nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 878.6 nm |
| Output Power: | 65000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 65 W |
| Center Wavelength: | 878.6 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 10.0 A |
| Operating Voltage: | 7.5 V |
| Conversion Efficiency: | 48 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Features
High Output Power: Provides up to 65W of optical power for demanding applications
Stabilized Wavelength: Centered at 878.6nm with a narrow spectral width of 1.0nm.200μm Fiber Core: Ensures precise power delivery with a high numerical aperture of 0.22
Efficient Power Conversion: Achieves up to 48% conversion efficiency, maximizing energy use
Wide Operating Current Range: Operates between 5A and 10A for flexible power control.
SC/SMA905 Connector: Ensures reliable connections for secure system integration
Compact and Durable: Designed for industrial environments with consistent output and durability
Applications
- Solid-State Laser Pumping: Ideal for high-power laser pumping in scientific and industrial environments
- Materials Processing: Suitable for precision applications like cutting, welding, and engraving
- Medical Laser Treatments: Utilized in therapeutic procedures requiring high accuracy and reliability
- Scientific Research: Supports advanced research applications requiring stable and reliable laser output
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum optical output power is 65W.
The center wavelength is 878.6nm, with a typical range from 878.1nm to 879.1nm.
The numerical aperture (NA) of the fiber is 0.22.
The fiber pigtail is 2.0 meters long.
It uses an SC/SMA905 connector for reliable system integration.
The spectral width (FWHM) is 1.0nm.
The typical power conversion efficiency is 48%.
The laser operates in a current range from 5A to 10A.
It is ideal for solid-state laser pumping, materials processing, medical treatments, and scientific research.
The fiber core diameter is 200μm.
