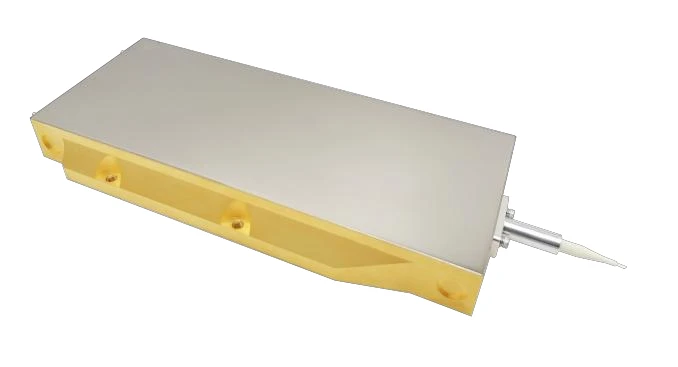

700W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics Co., Ltd 700W 976nm Fiber Coupled Power Diode Laser (GK-976700200) delivers robust performance with its high optical output power, ideal for demanding industrial and scientific applications. Designed to operate at a maximum output power of 700W, this diode laser operates within a center wavelength range of 973nm to 979nm, with a typical wavelength of 976nm, ensuring precise energy delivery for applications such as fiber laser pumping, materials processing, and medical systems.
The laser comes equipped with a 200μm core diameter fiber and a numerical aperture (NA) of 0.22, providing high-efficiency energy transfer. With a 95% power NA of 0.20, it ensures beam quality and stability in high-power, continuous operation scenarios. The fiber pigtail has a length of 1.5 meters, offering flexibility during integration into existing systems.
Featuring an impressive typical conversion efficiency of 48%, the diode laser is optimized for energy savings, making it suitable for continuous industrial applications. The system operates at a maximum current of 26.5A and a voltage of 58.0V, ensuring steady performance under heavy workloads.
With its superior design, high output power, and reliable performance, the GKER 700W 976nm Fiber Coupled Power Diode Laser is the optimal solution for industries looking to enhance their productivity while maintaining precision and stability in their processes.
700W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 700000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 700 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.185 NA |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 NA |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 26.5 A |
| Operating Voltage: | 58.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers a maximum power output of 700W for high-demand applications
- Precise Wavelength Control: Operates at a center wavelength of 976nm for accurate energy delivery
- Efficient Fiber Coupling: Equipped with a 200μm fiber core and a numerical aperture (NA) of 0.22 for optimal energy transfer
- Excellent Beam Quality: Features a 95% power NA of 0.20 for precise and stable beam performance
- High Conversion Efficiency: Provides a typical conversion efficiency of 48% for enhanced energy savings
- Robust Electrical Design: Operates at up to 26.5A and 58.0V, ensuring stability under continuous operation
Applications
- Fiber Laser Pumping: Ideal for powering high-performance fiber laser systems
- Industrial Material Processing: Suitable for precision tasks like cutting, welding, and engraving
- Medical Systems: Designed for medical devices requiring precise, high-power laser sources
- Scientific Research: Supports advanced research requiring reliable and high-performance laser systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 700W.
The center wavelength is 976nm, with a range between 973nm and 979nm.
The fiber core diameter is 200μm.
The numerical aperture (NA) is 0.22, with a 95% power NA of 0.20.
The typical conversion efficiency is 48%.
The operating current is up to 26.5A, and the operating voltage is 58.0V.
The pigtail length is 1.5 meters.
Applications include fiber laser pumping, industrial material processing, medical devices, and scientific research.
Yes, the beam quality is stable, with a 95% power NA of 0.20, ensuring high performance.
Yes, it is designed for continuous high-power operation in industrial settings.
