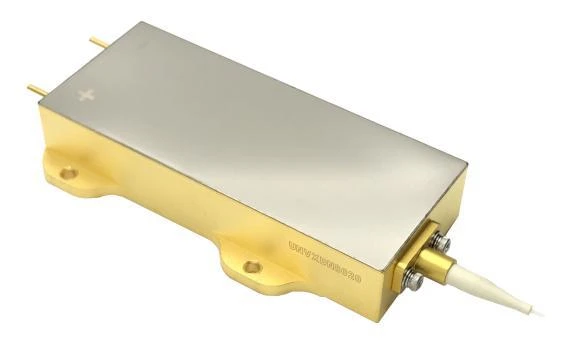

75W 793nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 75W 793nm 200μm Fiber Coupled Power Diode Laser is designed for applications that demand high efficiency and precision in light delivery. With a robust output power of 75W, a center wavelength of 793nm, and a narrow spectral width of 4nm (FWHM), this laser is ideal for industrial, medical, and scientific environments where precision and stability are essential. The laser's fiber coupling is optimized with a 200μm core diameter and a numerical aperture of 0.22, allowing for efficient transmission and flexibility in various setups.
Its high conversion efficiency ensures maximum power output while maintaining operational stability, making it suitable for demanding applications like material processing, laser pumping, and medical procedures. With a pigtail length of 2 meters, this laser is highly adaptable for both short- and long-range applications.
Engineered with high reliability and superior performance in mind, the GK-793075200 delivers exceptional results in environments requiring low power loss and precise beam quality. The SMA905 connector further enhances its ease of use by providing secure and reliable fiber connections.
75W 793nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 793 nm |
| Output Power: | 75000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 75 W |
| Center Wavelength: | 793 nm |
| Spectral Width(FWHM): | 4 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 16.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Provides up to 75W of stable optical power for industrial and scientific applications
- Precise Wavelength: Operates at a center wavelength of 793nm with a narrow spectral width of 4nm (FWHM)
- Efficient Fiber Coupling: Features a 200μm core diameter and 0.22 NA for optimal light transmission
- High Conversion Efficiency: Typical conversion efficiency of up to 16% ensures optimal power usage
- Compact Pigtail: 2-meter pigtail length for easy integration into various setups
SMA905 Connector: Ensures secure fiber connections for stable performance
Applications
- Laser Pumping: Ideal for optical pumping in high-precision systems
- Material Processing: Suited for cutting, welding, and other industrial applications
- Medical Procedures: Used in various laser-based medical treatments requiring precise control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The diode laser delivers a maximum output power of 75W.
The center wavelength of this laser is 793nm.
The fiber has a core diameter of 200μm.
The numerical aperture (NA) of the fiber is 0.22.
The fiber pigtail length is 2 meters.
The typical spectral width is 4nm.
The laser uses an SMA905 connector for fiber coupling.
The typical conversion efficiency is 16%.
The typical operating voltage is 48V, and the current is 10A.
It is ideal for laser pumping, material processing, and medical procedures.
