767 Single-Frequency DBR Fiber-Coupled|Optically Packaged IsoBragg
Description
The Photodigm IsoBragg™ 767.700 DBRH-IBragg is an advanced fiber-coupled optically isolated laser diode package designed for high-performance applications requiring single-frequency operation and exceptional optical isolation. Leveraging Photodigm’s proprietary Distributed Bragg Reflector (DBR) laser diode technology, this module delivers a single spatial mode output with superior power stability and efficiency.

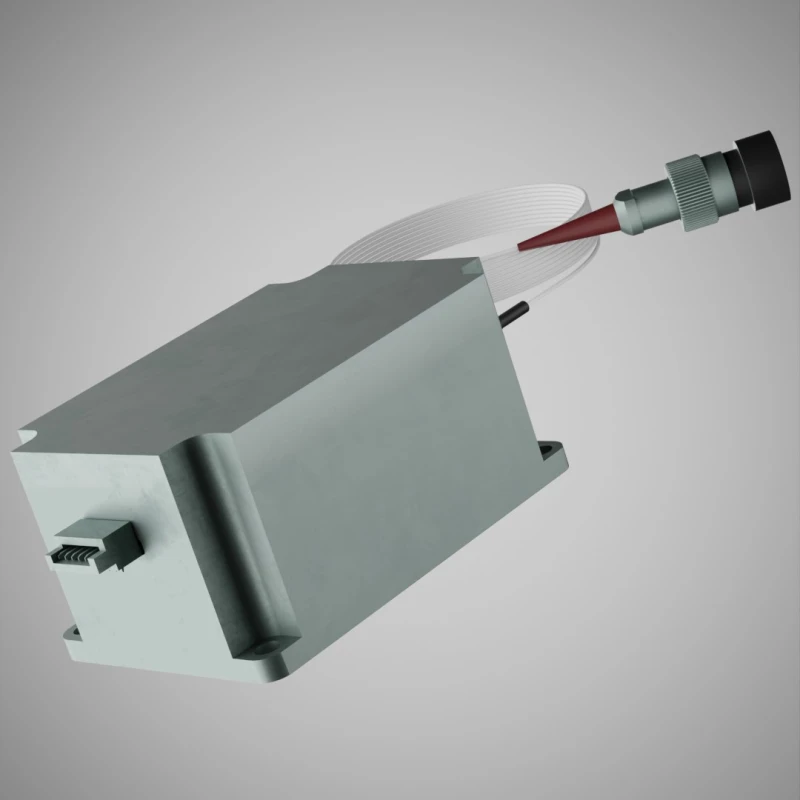

The IsoBragg™ package features a monolithic Gallium Arsenide (GaAs) DBR laser diode that is edge-emitting and pre-aligned for optimal coupling into a 1-meter polarization-maintaining (PM) fiber with an FC/APC male connector. Integrated optical isolation (≥30 dB) ensures minimal back-reflections, protecting the laser from destabilization.
Designed with precision, the aluminum 6061 housing ensures thermal stability, while the integrated thermo-electric cooler (TEC) provides active temperature control. The power range of 10-50 mW and low-noise operation make it ideal for spectroscopy, atomic cooling, and quantum optics.
With its compact 58.0 x 40.0 x 29.0 mm footprint and high-reliability construction, the IsoBragg™ 767.700 DBRH-IBragg is an excellent solution for research and industrial applications requiring high spectral purity and long-term operational stability.
767 Single-Frequency DBR Fiber-Coupled|Optically Packaged IsoBragg
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 767 nm |
| Output Power: | 10 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Optical Isolation: | ≥ 30 dB |
| Fiber Bend Radius: | 25 mm |
| Fiber Numerical Aperture: | 0.12 |
| Dimensions: | 58.0 x 40.0 x 29.0 mm |
| Nominal Laser Linewidth @ LIV Current: | 500 kHz |
| Operating Current, Max (CW & Pulsed): | 200 mA |
Features
- Fiber-Coupled Output: Delivers a single spatial mode beam through a 1-meter PM fiber with FC/APC male connector
- High Optical Isolation: Ensures stable laser performance with an isolation of ≥30 dB, reducing interference from back-reflections
- DBR Laser Technology: Based on Gallium Arsenide (GaAs) monolithic DBR technology, providing single-frequency operation
- Compact and Robust Design: Housed in a 58.0 x 40.0 x 29.0 mm aluminum 6061 enclosure for durability and thermal stability
- Thermo-Electric Cooling (TEC): Features an active TEC system for precise temperature control, ensuring long-term stability
- Wide Power Range: Supports an adjustable power output from 10 to 50 mW, tailored to specific application needs
- Low Fiber Bend Radius: With a minimum bend radius of 25 mm, the fiber ensures flexibility while maintaining signal integrity
- Electrostatic Discharge (ESD) Protection: Requires handling precautions to prevent damage from static discharge
Applications
- Atomic and Molecular Spectroscopy: Ideal for high-precision atomic transitions and absorption spectroscopy
- Quantum Optics and Computing: Supports applications in quantum communications and photon-based computing
- Laser Cooling and Trapping: Essential for cold atom experiments and atomic manipulation
- Biomedical and Fluorescence Imaging: Used in high-resolution imaging techniques requiring stable laser sources
- High-Resolution Metrology: Enables interferometry and precision optical measurements
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The IsoBragg™ package integrates fiber coupling and optical isolation (≥30 dB), minimizing back-reflections that can destabilize the laser. This ensures higher stability, spectral purity, and ease of integration compared to standard DBR laser diodes.
The laser is coupled into a 1-meter-long polarization-maintaining (PM) fiber with an FC/APC male connector, ensuring minimal insertion loss and maintaining a single spatial mode.
This laser is ideal for atomic and molecular spectroscopy, laser cooling and trapping, quantum optics, high-resolution metrology, and biomedical imaging, where high spectral purity and optical isolation are essential.
The IsoBragg™ module is ESD-sensitive, requiring a grounded work area, wrist strap, and proper storage in an antistatic container to prevent damage.
The integrated thermo-electric cooler (TEC) provides precise temperature control with a TEC current range of ±1.9 A and a TEC voltage range of ±2.8 V, ensuring long-term laser wavelength and power stability.
