794.978 Single-Frequency DBR Fiber-Coupled|Optically Packaged IsoBragg
Description

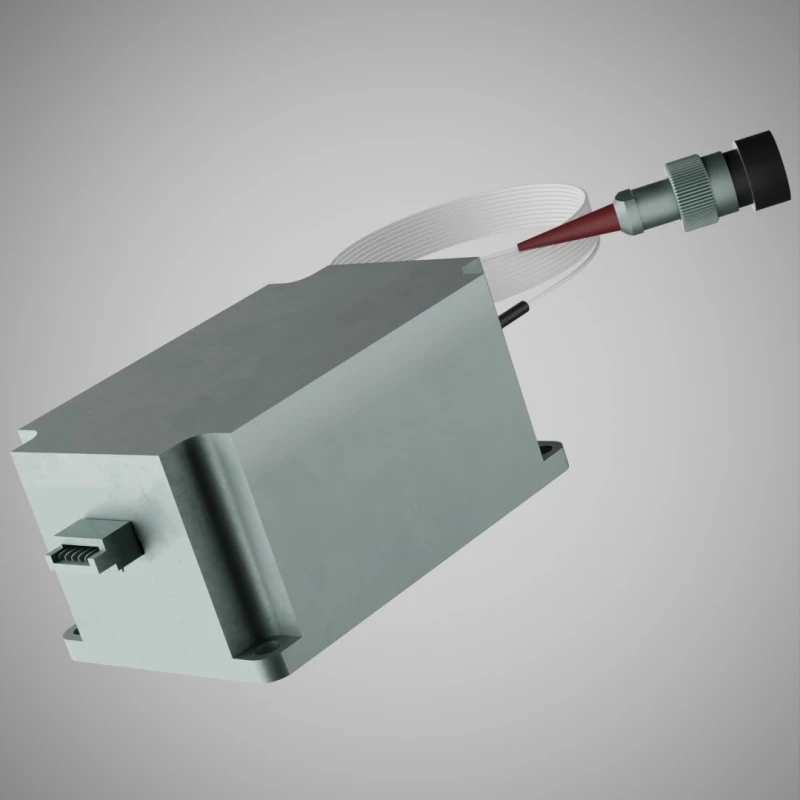

The Photodigm IsoBragg™ is an advanced fiber-coupled laser diode package designed for high-performance applications requiring optical isolation. It integrates Photodigm’s proprietary Distributed Bragg Reflector (DBR) laser diode technology, ensuring a single spatial mode beam with exceptional stability and precision. The monolithic single-frequency GaAs design enables superior coherence and narrow linewidth operation.
The IsoBragg™ package offers enhanced reliability with a robust Aluminum 6061 enclosure and features a polarization-maintaining (PM) fiber for stable beam transmission. The FC/APC male connector ensures low-back-reflection coupling, making it ideal for applications requiring high optical isolation (≥ 30 dB).
Designed for precision optical setups, the IsoBragg™ provides power outputs ranging from 10 mW to 110 mW and supports TEC-controlled thermal stability for consistent performance across varying conditions. With its compact 58.0 x 40.0 x 29.0 mm footprint, the IsoBragg™ is a powerful solution for spectroscopy, quantum optics, and advanced metrology applications.
794.978 Single-Frequency DBR Fiber-Coupled|Optically Packaged IsoBragg
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 795 nm |
| Output Power: | 10 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Operating Current, Max (CW & Pulsed): | 250 mA |
| Dimensions: | 58.0 x 40.0 x 29.0 mm |
| Nominal Laser Linewidth @ LIV Current: | 500 kHz |
| Temperature Tuning Rate: | 0.06 nm/ºC |
| Fiber Bend Radius: | 25 mm |
| Fiber Numerical Aperture: | 0.12 |
| Storage Temperature: | 0 to +70 °C |
Features
- Fiber-Coupled Precision: Provides a single-mode spatial output via a 1-meter PM fiber with an FC/APC connector
- High Optical Isolation: Ensures minimal feedback and signal degradation with ≥ 30 dB isolation
- Narrow Linewidth: Maintains a single-frequency operation with excellent coherence for precision applications
- Wide Power Range: Supports 10 mW to 110 mW output, adaptable for different applications
- Compact & Robust Design: Constructed with Aluminum 6061 housing for durability and easy integration
- Efficient Thermal Management: TEC-enabled operation with ±1.9 A current and ±2.8 V voltage control
Applications
- Precision Spectroscopy: Ideal for high-resolution atomic and molecular studies
- Quantum Optics & Computing: Provides stable single-frequency output for quantum experiments
- Optical Metrology: Enables precise wavelength stabilization in metrology systems
- Laser Interferometry: Supports high-sensitivity interferometric measurements
- Biomedical Applications: Used in fluorescence imaging and optical diagnostics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The IsoBragg™ package integrates a Photodigm Distributed Bragg Reflector (DBR) laser diode with fiber coupling and optical isolation in a compact design. It ensures single-frequency operation, high coherence, and minimal optical feedback (≥ 30 dB isolation), making it ideal for precision applications like spectroscopy and quantum optics.
The IsoBragg™ package features a 1-meter-long polarization-maintaining (PM) fiber with an FC/APC male connector, ensuring stable beam transmission and minimal back reflections.
The IsoBragg™ package supports an optical power output ranging from 10 mW to 110 mW, depending on the selected device architecture and wavelength.
The package includes a Thermo-Electric Cooler (TEC) with a control range of ±1.9 A and ±2.8 V, ensuring precise temperature stabilization for optimal performance.
The IsoBragg™ is ESD-sensitive and should be handled in a grounded work area using an antistatic wrist strap. It must also be stored in an antistatic container with all leads shorted together to prevent damage.
