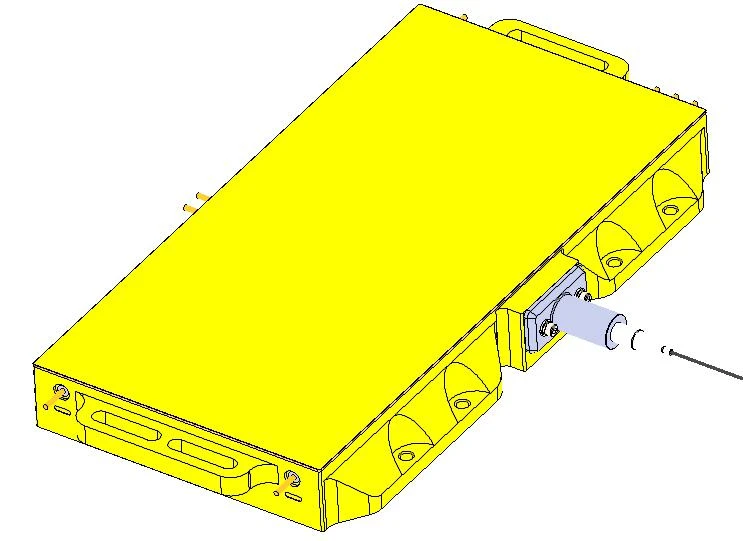

800W 976nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics Co., Ltd 800W 976nm Fiber Coupled Power Diode Laser (GK-976800200) offers industry-leading performance with a high-power output of 800W, making it ideal for a wide range of applications. Operating at a center wavelength of 976nm, with a range of 973nm to 979nm, this diode laser ensures precise and reliable power delivery, suitable for fiber laser pumping, material processing, medical treatments, and advanced research.
This laser is equipped with a 200μm fiber core diameter and a numerical aperture (NA) of 0.22, ensuring efficient coupling and energy transfer. With a 95% power NA of 0.20, the laser provides excellent beam quality, which is critical for high-precision tasks. The pigtail length is 1.5 meters, allowing for convenient integration into various system configurations.
With a high typical conversion efficiency of 48%, the diode laser ensures energy savings and reduced operating costs. It operates at a maximum current of 33A and a voltage of 65.0V, ensuring stability even during continuous high-power operation.
The GKER 800W 976nm Fiber Coupled Power Diode Laser is designed for demanding industrial environments, ensuring long-lasting performance and high reliability. Its advanced optical and fiber coupling technology makes it the perfect solution for industries seeking high efficiency, stability, and precision in their laser applications.
800W 976nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 800000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 800 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.185 NA |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 NA |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 33 A |
| Operating Voltage: | 65.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Provides a powerful 800W maximum output for high-demand applications
- Precise Wavelength Control: Operates at a center wavelength of 976nm for optimal energy delivery
- Efficient Fiber Coupling: Features a 200μm fiber core with a numerical aperture (NA) of 0.22 for effective energy transfer
- Excellent Beam Quality: Achieves a 95% power NA of 0.20 for stable and precise beam performance
- High Conversion Efficiency: Typical conversion efficiency of 48% for reduced energy consumption and operating costs
- Robust Electrical Design: Operates at 33A current and 65.0V voltage for reliable, continuous operation
Applications
- Fiber Laser Pumping: Ideal for powering high-performance fiber lasers in various industrial applications
- Industrial Material Processing: Suitable for precision tasks such as cutting, welding, and surface treatment
- Medical Devices: Designed for use in medical applications requiring high power and precision
- Advanced Research: Supports cutting-edge research in fields requiring high-stability laser performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 800W.
The center wavelength is 976nm, with a range of 973nm to 979nm.
The fiber core diameter is 200μm.
The numerical aperture (NA) is 0.22, with a 95% power NA of 0.20.
The typical conversion efficiency is 48%.
The operating current is 33A, and the operating voltage is 65.0V.
The pigtail length is 1.5 meters.
Applications include fiber laser pumping, industrial material processing, medical devices, and advanced research.
Yes, it is designed for continuous high-power operation.
Yes, the beam quality is stable with a 95% power NA of 0.20, ensuring high precision.
