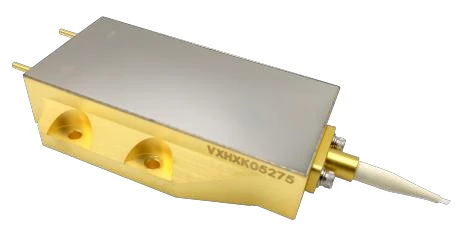

80W 915nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 80W 915nm 105μm Fiber Coupled Power Diode Laser is designed for industrial and medical applications that require high power and precision. With an output power of 80W, it offers reliable performance for tasks like fiber laser pumping, medical laser treatments, and material processing. This diode laser features a center wavelength of 915nm, delivering a stable and consistent output for wavelength-specific applications.
Equipped with a 105μm core diameter fiber and a numerical aperture (NA) of 0.22, it ensures efficient light transmission while maintaining precise beam control. The laser operates with an efficiency of up to 48%, making it an energy-efficient solution for high-performance operations. Additionally, its narrow spectral width of 2nm (FWHM) provides precise wavelength control, while the robust construction ensures excellent stability even in demanding environments.
The laser is optimized for flexible integration, with a 2-meter pigtail length that allows for easy connection to different systems. Whether you’re in need of a reliable solution for fiber laser pumping or other high-power applications, the GK-915V80105 diode laser delivers excellent performance and stability.
80W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 80000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 80 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5Typ:1.2 m |
| Operating Current: | 18.5 A |
| Operating Voltage: | 11 V |
| Conversion Efficiency: | 48 % |
Features
- 80W Output Power: High power output suitable for fiber laser pumping and material processing
- 915nm Center Wavelength: Stable wavelength ideal for industrial and medical use
- 105μm Fiber Core Diameter: Efficient light transmission with a large core for high power
- Numerical Aperture of 0.22: Ensures precise control and focus of the output beam
- 2nm Spectral Width (FWHM): Narrowband emission for precise wavelength control
- Up to 48% Conversion Efficiency: Provides energy efficiency, reducing operational costs
- Durable Design: Robust and stable performance for demanding applications
Applications
- Fiber Laser Pumping: Efficient power delivery for fiber lasers in industrial settings
- Medical Laser Systems: Ideal for laser-based medical treatments requiring precise wavelengths
- Material Processing: Suitable for cutting, welding, and marking applications
- Laser Research and Development: Reliable for lab environments requiring stable high-power laser sources
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The laser provides up to 80W of output power, suitable for high-performance applications.
The center wavelength is 915nm, which is ideal for specific industrial and medical applications.
The core diameter of the fiber is 105μm, allowing for efficient light transmission.
The numerical aperture is 0.22, providing precise light control and beam focusing.
The spectral width is 2.0nm (FWHM), ensuring narrowband emission for accurate wavelength control.
The laser operates with a maximum current of 18.5A, ensuring consistent high-power performance.
The operating voltage is up to 11V, suitable for high-power demands.
The conversion efficiency is up to 48%, making the laser energy-efficient and cost-effective.
The pigtail length is 2 meters, providing flexibility for system integration and installation.
The wavelength range spans from 900nm to 930nm, offering stability and versatility for various applications.
