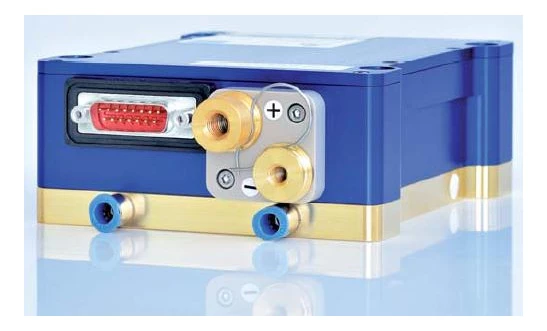

JOLD-210-CAXF-6A 976: Fiber-Coupled Diode Laser
Description
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack is a high-power laser system designed for various applications in lasers and material processing, optical systems, industrial metrology, traffic solutions, defense, and civil systems. This actively cooled laser stack operates in continuous wave (cw) mode, delivering an impressive optical output power of 210 W.
With a fiber core diameter of 600 μm (NA 0.22), this laser stack ensures efficient light transmission and precise targeting, making it ideal for pumping solid-state lasers, fiber lasers, and material processing tasks.
Equipped with an integrated pilot laser and power monitor, this laser stack enables easy alignment and power output monitoring, ensuring consistent and reliable performance.
Boasting a long lifetime exceeding 10,000 hours and high reliability, this laser stack is built to withstand demanding operating conditions, ensuring durable and consistent power output over its lifespan.
Operating at various center wavelengths (807 nm, 915 nm, 938 nm, and 976 nm) at 25 °C, and with typical and maximum spectral bandwidths of 4 nm and 5 nm respectively, this laser stack offers versatility and precise control. The typical and maximum operation currents range from 59 A to 64 A and 65 A to 70 A respectively.
To maintain optimal performance, the laser stack requires a flow rate of 2.3 l/min ± 0.2 l/min of deionized water within a temperature range of 15 to 35 °C. It is essential to maintain water pressure below 400 kPa with a pressure drop between 150 and 250 kPa. The laser stack utilizes Ø 8 mm push-in fittings for water connectors and requires deionized water with a conductivity of 2 to 6 μS/cm and a particle filter size below 25 μm.
JOLD-210-CAXF-6A 976: Fiber-Coupled Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 140000 mW |
| Fiber Core Diamater: | 400 um |
| Fiber Cladding Diameter: | -- um |
Features
- High optical output power of 210 W in continuous wave (cw) mode
- Fiber core diameter of 600 μm (NA 0.22) for efficient light transmission and precise targeting
- Integrated pilot laser and power monitor for easy alignment and power output monitoring
- Long lifetime exceeding 10,000 hours for reliable and durable performance
- Suitable for pumping solid-state lasers, fiber lasers, and material processing applications
Applications
- Pumping of solid-state lasers and fiber lasers
- Material processing
- Medical applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack requires a flow rate of 2.3 l/min ± 0.2 l/min of deionized water within a temperature range of 15 to 35 °C. It is essential to maintain water pressure below 400 kPa with a pressure drop between 150 and 250 kPa. The laser stack utilizes Ø 8 mm push-in fittings for water connectors and requires deionized water with a conductivity of 2 to 6 μS/cm and a particle filter size below 25 μm.
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack has a fiber core diameter of 600 μm (NA 0.22) for efficient light transmission and precise targeting.
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack is suitable for pumping solid-state lasers, fiber lasers, and material processing tasks.
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack has a typical spectral bandwidth of 4 nm and a maximum spectral bandwidth of 5 nm.
The JOLD-210-CAXF-6A Fiber-Coupled Diode Laser Stack has a maximum optical output power of 210 W in continuous wave (cw) mode.
