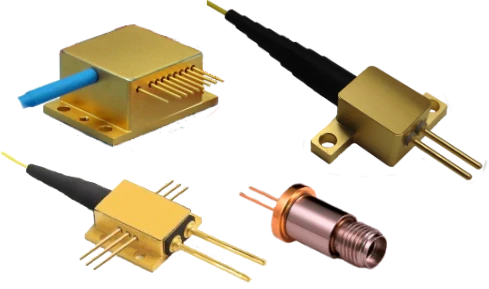

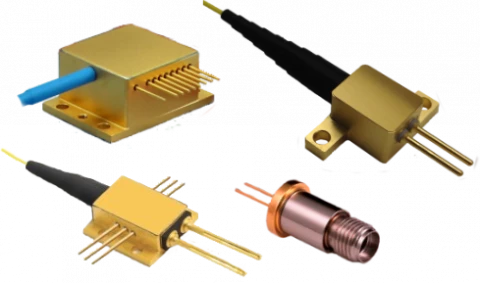

LDX-2106-622: 622nm 120mW Fiber Coupled Multimode Laser Diode
Description
The LDX Series of made-in-the-US, high-power, multimode laser diodes provides wavelengths from 400nm – 1900nm, a wide range of output powers and package types, as well as completely customized solutions. We have been offering these high-quality laser diodes for over 25 years. The performance, reliability, and lifetimes are time-tested, and if, for some reason, there is an issue, we will make it right.
Benefits:
- Low threshold current and high slope efficiency: resulting in a low operating current that enhances reliability
- High precision placement with a flux-free, void-free, uniform solder thickness
- Customizable: From wafers & packaging to options & qualification
- Made-in-the-US: No tariffs or international shipping issues
- Dependable Delivery: Just-in-time deliveries – Buffer stock
- No Discontinued Products: Guaranteed supply for the life of your program
- Advanced hard or soft laser soldering process – Superior packaging
- The broadest selection of diode wavelengths and packaging configurations on the market
LDX-2106-622: 622nm 120mW Fiber Coupled Multimode Laser Diode
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 622 nm |
| Output Power: | 120 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | 125 um |
Features
- Wavelength: 622nm
- Output Power: 150mW free space, 120mW from the fiber
- High output power and dynamic range
- High efficiency
- Custom packaging available
- Custom wavelengths and laser designs available.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The LDX Series provides wavelengths from 400nm – 1900nm.
The output power of the LDX-2106-622 laser diode is 150mW free space, 120mW from the fiber.
Yes, the LDX Series is customizable from wafers & packaging to options & qualification.
The LDX Series laser diodes use an advanced hard or soft laser soldering process for superior packaging.
The LDX Series laser diodes offer dependable delivery with just-in-time deliveries and buffer stock.
