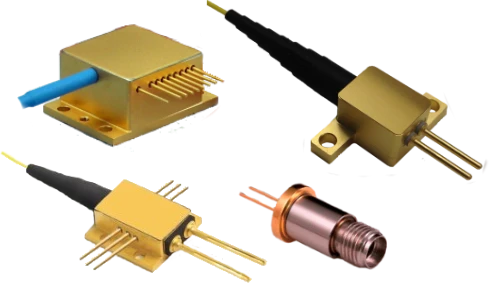

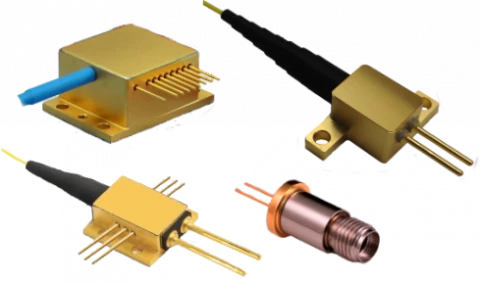

LDX-2405-690: 690nm 320mW Fiber Coupled Multimode Laser Diode
Description
The LDX Series of made-in-the-US, high-power, multimode laser diodes provides wavelengths from 400nm – 1900nm, a wide range of output powers and package types, as well as completely customized solutions. We have been offering these high-quality laser diodes for over 25 years. The performance, reliability, and lifetimes are time-tested, and if, for some reason, there is an issue, we will make it right.
Benefits:
- Low threshold current and high slope efficiency: resulting in a low operating current that enhances reliability
- High precision placement with a flux-free, void-free, uniform solder thickness
- Customizable: From wafers & packaging to options & qualification
- Made-in-the-US: No tariffs or international shipping issues
- Dependable Delivery: Just-in-time deliveries – Buffer stock
- No Discontinued Products: Guaranteed supply for the life of your program
- Advanced hard or soft laser soldering process – Superior packaging
- The broadest selection of diode wavelengths and packaging configurations on the market
LDX-2405-690: 690nm 320mW Fiber Coupled Multimode Laser Diode
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 690 nm |
| Output Power: | 320 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | 125 um |
| Operating Current: | 900 mA |
Features
- Wavelength: 690nm
- Output Power: 400mW free space, 320mW from the fiber
- High output power and dynamic range
- High efficiency
- Custom packaging available
- Custom wavelengths and laser designs available.
Applications
Suitable for various opto-electronic applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The LDX Series provides wavelengths from 400nm – 1900nm.
The LDX-2405-690 laser diode has an output power of 400mW free space and 320mW from the fiber.
Yes, the LDX Series laser diodes are customizable from wafers and packaging to options and qualification.
The advantage of the LDX Series laser diodes being made in the US is that there are no tariffs or international shipping issues.
The LDX Series laser diodes are suitable for various opto-electronic applications.
