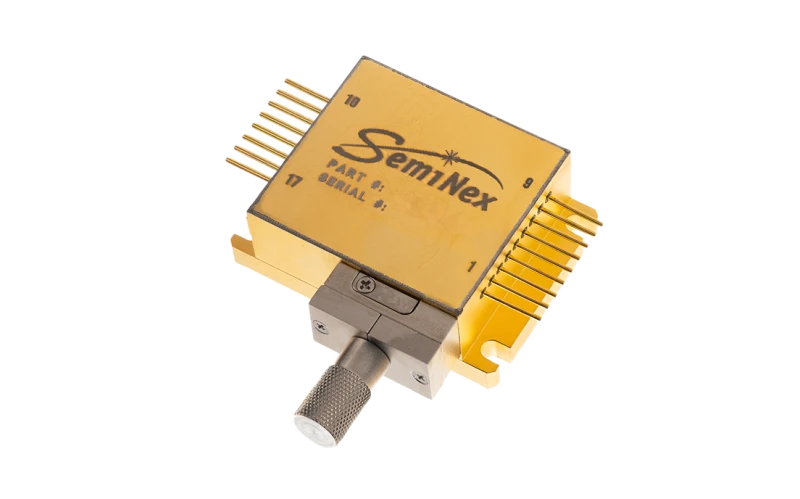

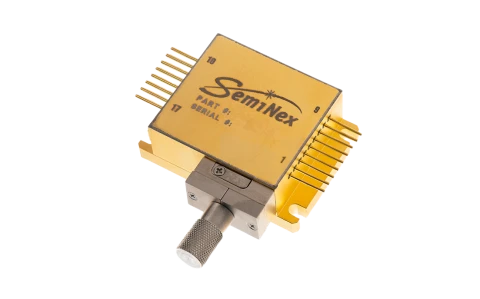

SemiNex 4-Pin Fiber Coupled High Power Multi-Mode Laser Diode 4CM-104
Description
The SemiNex 4-Pin Fiber Coupled High Power Multi-Mode Laser Diode offers an advanced solution for high-power infrared laser applications, delivering exceptional performance and reliability. With a wavelength range spanning from 12xx to 19xx nm, this laser diode is highly versatile and suitable for a wide range of applications including OEM medical equipment, DPSS pump sources, LiDAR systems, free space communications, and military/aerospace systems.
Engineered for cost-effectiveness, the diode provides high output power with a high dynamic range and efficiency, ensuring optimal performance in demanding environments. Its standard low-cost package is designed for volume applications, making it an ideal choice for industrial and commercial use.
Additionally, customization options are available to meet specific requirements. Rigorously tested and optimized for performance, the SemiNex 4-Pin Fiber Coupled High Power Multi-Mode Laser Diode sets a new standard for reliability, efficiency, and versatility in infrared laser technology.
SemiNex 4-Pin Fiber Coupled High Power Multi-Mode Laser Diode 4CM-104
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW), Modulated |
| Fiber Type: | Multi-Mode |
| Wavelength: | 1480 nm |
| Output Power: | 3800 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | -- um |
| Spectral Width FWHM: | 10 nm |
| Power Conversion Eff.: | 19 % |
| Threshold Current: | 0.5 A |
| Operating Current: | 12 A |
| Operating Voltage: | 1.7 V |
| Lead Soldering Temp: | 250 °C |
| Weight: | 25.4 g |
| Operating Temp.: | -40 to + 60 °C |
| Storage Temp.: | -40 to +80 °C |
| Fiber Length: | 1.5 m |
| Connector: | SMA905 PD Stand. |
Features
- Cost-effective solution for high-power infrared laser applications
- High output power with a high dynamic range and efficiency
- Standard low-cost package designed for volume applications
- Custom wavelengths available to meet specific needs
- Tested and optimized design for reliability and performance
Applications
- OEM Medical Equipment
- DPSS Pump Source
- LiDAR (Light Detection and Ranging)
- Free Space Communications
- Military and Aerospace Systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The wavelength range of the SemiNex 4-Pin Fiber Coupled High Power Multi-Mode Laser Diode spans from 12xx to 19xx nm, with custom wavelengths available upon request.
This laser diode is suitable for various applications including OEM medical equipment, DPSS pump sources, LiDAR systems, free space communications, and military/aerospace systems.
The key features include cost-effectiveness, high output power, high dynamic range, high efficiency, and a standard low-cost package designed for volume applications.
Yes, customization options are available to meet specific requirements. Please contact SemiNex for more information.
The electrical specifications include a power conversion efficiency of 19%, threshold current of 0.5 A, operating current of 12 A, and operating voltage of 1.7 V.
The laser diode weighs 25 g and operates within a temperature range of -40 to 60°C, with a storage temperature range of -40 to 80°C.
No, the 4-Pin laser package is not electrically isolated. The package body serves as the anode connection, and care should be taken during mounting and installation.
