Illuminator for ultra-short pulses
Description
From 2 to 10 µJ – 3 ns, up to 500 kHz
That illuminator can generate pulses as short as 3 ns with energies from 2 to 10 µJ. It can support pulse repetition rates in the range 100-500 kHz, depending on output energy per pulse, with a maximum average power of 1 W.

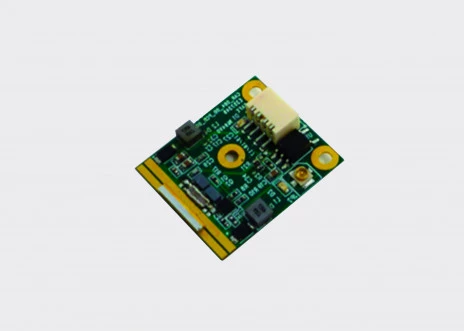

That module integrates a laser diode directly mounted onto a driver board according to an on-chip laser diode design, which makes this ultra-compact assembly ideal for integration into confined volumes, and bears a high potential for low cost production of this laser source. Various parameters regarding laser emission and electrical interface can be chosen by the customer. Components of that module have been selected to provide the highest possible efficiency, leading to a low power consumption, and the brightest possible emission. Additional equipment required to operate that illuminator, such as external power supplies and function generator, can be provided as an option.
Illuminator for ultra-short pulses
Specifications |
|
|---|---|
| Output Power (avg): | 1 W |
| Wavelength: | 0.8/0.9/.91/0.94/0.98 um |
| Pulse Duration: | 3-3ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Features
- Energy and pulse width from 2µJ/3ns to 10µJ/3ns
- Maximal pulse repetition rate between 100 and 500 kHz
- Up to 1 W average power
- Single wavelength emission among 808, 905, 915, 940 or 980 nm (other wavelengths in option)
- Fast-axis collimation upon request for one-bar diode design
- High reliability (> 100 x 109 shots)
- Robust design, shock and vibration resistant
Applications
- 3D flash LIDAR
- Time of flight
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The illuminator can generate pulses with energies ranging from 2 to 10 µJ.
The illuminator can generate pulses as short as 3 ns.
The illuminator can support pulse repetition rates in the range of 100-500 kHz.
The illuminator has a maximum average power of 1 W.
Yes, the illuminator is designed to be ultra-compact and ideal for integration into confined volumes.
