PowerMir 9.4µm High Power Pulsed Quantum Turnkey System 300mW
Description
The PowerMir 9.4µm High-Power Pulsed Quantum Cascade Laser Benchtop Turnkey System represents a cutting-edge solution tailored for laboratory research and development endeavors. This comprehensive system integrates advanced technology with user-friendly features, providing researchers and engineers with a versatile platform for exploring the capabilities of quantum cascade lasers (QCLs) in various applications.
At the heart of this system lies a high-performance quantum cascade laser (QCL) meticulously engineered to emit pulsed radiation at a wavelength of 9.4 microns (µm). This wavelength range is strategically chosen to target molecular vibrational resonances, making it particularly well-suited for gas sensing, spectroscopic analysis, and other scientific and industrial applications.
The turnkey system's plug-and-play design ensures hassle-free setup and operation, allowing users to focus on their experiments without the complexities of intricate configurations. With the included user-friendly Windows software, researchers gain precise control over critical parameters such as laser temperature, current, frequency modulation, and duty cycle. This software interface empowers users to tailor the laser's output to their specific experimental requirements, facilitating accurate and reproducible results.
PowerMir 9.4µm High Power Pulsed Quantum Turnkey System 300mW
Specifications |
|
|---|---|
| Output Power (avg): | 0.300 W |
| Wavelength: | 9.4 um |
| Pulse Duration: | 10-300ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Pulse Frequency: | 500 kHz |
| Divergence For The Lasers With Standard Beam: | 3 to 6 mrad (horizontal), 2 to 4 mrad (vertical) |
| Beam Quality: | TM00 Gaussian beam, M²<1.5 |
| Output Beam Dimension For The Standard Beam Option (window Output): | Typically 3 mm (vertical) x 2 mm (horizontal) |
| Polarization: | Linear vertically polarized (>98%) |
| Reliability: | > 3500 h |
| Input Power: | 24V DC (an AC/DC power transformer is supplied) |
| Dimension: | laser head: 20cm x 15cm x 6cm / driver: 25cm*15cm*6cm |
| Weight: | 925 g |
| Operational Temperature Range: | -10 to +30 °C |
| Laser Head Cooling: | Air cooled |
Features
- Plug-and-play benchtop system for easy setup and operation
- User-friendly Windows software for precise control of temperature, current, and
- modulation

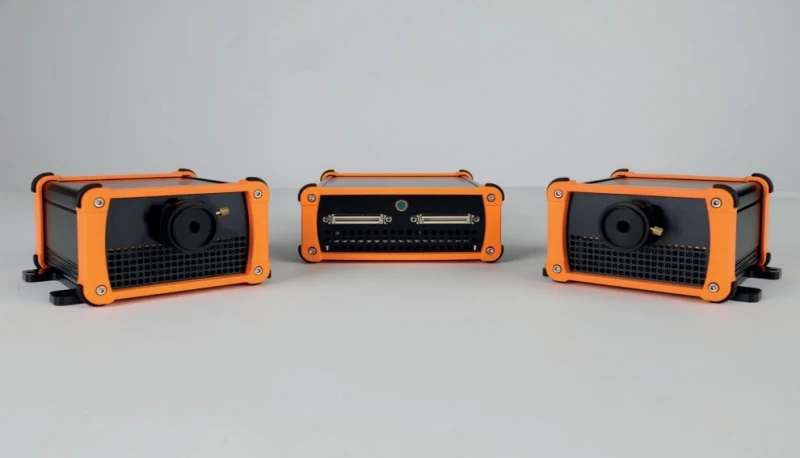

- Compatible with one or two laser heads, regardless of wavelength or power
- Air-cooled laser heads ensure optimal performance and stability
- Red beam laser for alignment purposes facilitates setup and calibration
- Laser safety features, including ON/OFF control and temperature monitoring
- Frequency modulation and duty cycle control for flexible operation
- External TTL interface for synchronization with other equipment
Applications
- Spectroscopic analysis and research
- Gas sensing and monitoring
- Material processing and characterization
- Biomedical diagnostics and imaging
- Defense and security applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The system emits pulsed radiation at a central wavelength of 9.4 microns (+/- 0.1 µm).
This system is ideal for various applications including gas sensing, spectroscopy, and molecular analysis.
The system offers plug-and-play functionality, precise control over laser parameters, air-cooled laser heads, and a user-friendly Windows software interface.
Yes, the system is specifically designed for laboratory research and development, providing researchers with a versatile platform for experimentation.
The system features laser safety measures such as an ON/OFF laser driver, temperature and TEC control, and external TTL triggering for enhanced safety during experiments.
The laser head measures approximately 20cm x 15cm x 6cm, while the driver measures 25cm x 15cm x 6cm. The total weight is 925 grams.
The system operates within an ambient temperature range of +10°C to +30°C.
Yes, the system's plug-and-play design and compatibility with Windows software make it easy to integrate into existing laboratory setups.
The system requires a 24V DC power supply, which is supplied with an AC/DC power transformer.
The system includes an option for an extra red laser beam, which aids in alignment with typically 2-3mrad pointing difference between the red laser beam and the infrared beam.
