Benchtop Laser Diode 1.5A/TEC Controller for Butterfly LD 14 pin Pinout Type 1/ Type 2 Model: MBL1500A v0.0
Description

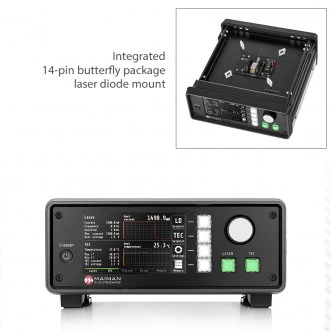

MBL1500A series benchtop laser diode controller is specially designed for laser diodes in Butterfly packaging in both Type 1 and Type 2 14-pin Laser Diode configurations. This controller includes high stability current source (0.01mА) for laser diodes, TEC for precise temperature control through a Peltier element (TEM) (0.01 °C) and mounting with an Azimuth ZIF Socket for Butterfly LD.
Benchtop Laser Diode 1.5A/TEC Controller for Butterfly LD 14 pin Pinout Type 1/ Type 2 Model: MBL1500A v0.0
Specifications |
|
|---|---|
| TEC Output Current Ripple: : | 2 ~ 4 mА |
| Warranty Period: | 1-year manufacturer's warranty |
| Input Power:: | Single Phase 220 VAC, 50Hz |
| Weight: : | 3.4 kg |
| Dimensions: : | 257 x 271 x 116 mm |
| Laser Diode Protection: | Soft-Start Current Ramp/ Current Protection/ Temperature Protection/ Reverse current protection/ ESD and transient protection |
| User Interface:: | Front Panel (Touch Screen or Buttons)/USB |
| Pinout: : | Type 1: Pump Laser Diode/Type 2: Telecom Laser Diode |
| Type Of Cooling:: | Air Cooling |
| Temperature Control Range: : | +15 to +40 °C |
| TEC Feedback Sensor NTC:: | 10 kOhm |
| Output Current LD (I): : | 1500 mA |
| TEC Output Voltage:: | ±4 V |
| ТЕС Output Current: : | ±4 А |
| Output Current Noise: : | 10-15 µA |
| Current Set Accuracy: : | < +/- 1 % |
| Current Stability: : | 0.1 % |
| Fall Time: : | <8000 μs |
| Rise Time: : | <4000 μs |
| Setpoint Resolution: : | 0,1 mA |
| Output Voltage LD (V): : | 0.5-3 V |
Features
- All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly LD
- Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode
- Controlled locally with Touch Screen or Buttons
- Controlled remote over USB (Software and Communication Protocol included)
- Integrated PID controller, doesn't require setup
- Soft-Start Current Ramp, Current Protection, Temperature Protection for Laser Diode
- Option to save 9 presetting
- Current stability < 0.1%
- Ability to set Limits
- Free software
Applications
- Driving/controlling Butterfly Laser Diodes 14 pin Pinout Type 1/ Type 2.
- These controllers are an excellent choice for laboratory test set-ups and have all the necessary protections for laser diodes' safe operation.
- These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa, Lumentum inc and others.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Spain
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
To get started with the MBL1500A series benchtop laser diode controller, read the manual thoroughly before powering on the driver. If you have any doubt or suggestion, please do not hesitate to contact the manufacturer.
The electrical characteristics of the MBL1500A series benchtop laser diode controller include low current ripple ≤ 10 μA, current stability 0.1%, no need to adjust voltage, soft-start, reverse current protection, low current ripple ≤ 2μA, adjustable TEC output voltage limit, and working with sensor NTC 10 kOhm.
The features of the MBL1500A series benchtop laser diode controller include an all-in-one current source, temperature controller and mount with Azimuth ZIF Socket for Butterfly LD, compatibility with Type 1 and Type 2 Butterfly 14-pin Laser Diode, controlled locally with Touch Screen or Buttons, controlled remote over USB (Software and Communication Protocol included), integrated PID controller, doesn't require setup, soft-start current ramp, current protection, temperature protection for Laser Diode, option to save 9 presetting, current stability < 0.1%, and ability to set limits.
The MBL1500A series benchtop laser diode controller is used for driving/controlling Butterfly Laser Diodes 14 pin Pinout Type 1/ Type 2. These controllers are an excellent choice for laboratory test set-ups and have all the necessary protections for laser diodes' safe operation.
The MBL1500A series benchtop laser diode controller is specially designed for laser diodes in Butterfly packaging in both Type 1 and Type 2 14-pin Laser Diode configurations.
