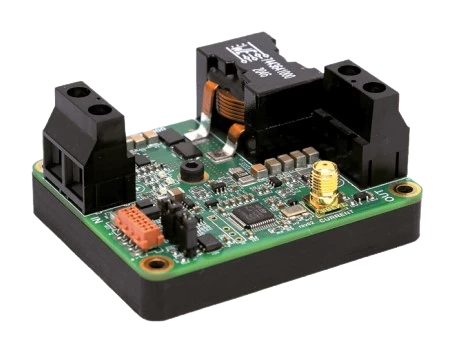

Evolase Oy - HPLD-1000 constant current laser diode driver/controller
Description
The HPLD-1000 is a compact non-isolated DC/DC switch mode power supply with constant current output. Driver produces high stability, low ripple current for powering laser diode modules. The output current value can be varied from 0 to 25 A. Driver can be controlled by CAN interface or external modulation signals.
3 OPERATING MODES
- CW – parameters set by PC software
- Trigger – current set by PC software + triggered output current by TTL
- Analog – current modulation by external signal + ON/OFF driver by TTL
HIGH PROTECTION
- overcurrent
- reverse current
- crowbar clamp
- over-temperature shutdown
Evolase Oy - HPLD-1000 constant current laser diode driver/controller
Features
- Wide input voltage range up to 48 Vdc
- Output Current up to 25 A
- Compliance voltage up to 40 V
- Efficiency up to 97%
- Low current ripple
- Triggering up to 3 kHz
- Analog modulation up to 30 kHz
- Overcurrent protection
- Reverse current protection
- Crowbar circuit protection
- External interlock function
- CAN interface
- Integrated heatsink
- Compact Size 70 mm × 56 mm × 34mm
Applications
Can be used as:
- Independent driver for single LD
- Driver integrated in pumping scheme of active fibers w/ external control
