Evolase Oy - PLD-CW-1000-TII constant current laser diode driver for 10/14 pin Butterfly Type II
Description
The PLD-CW-1000-TII is a constant current laser diode driver for powering 14-pin butterfly laser diode modules for applications, which require operation in low-signal RF
modulation mode. The driver provides precision low ripple constant current regulation.
The driver circuitry operates from a single 5Vdc power source.
The driver supplies a bidirectional proportional-integralderivative (PID) thermoelectric cooler controller (TEC) with current capability of 1.5 A and voltage capability of 4 V.
The main parameters of PLD-CW-1000-TII (output current, temperature set, monitor photodiode signal) are controlled by computer interface. The GUI can control multiple drivers connected by CAN/USB hub.

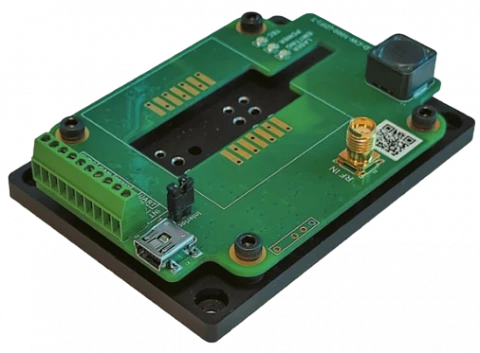

The PLD-CW-1000-TII has landing pads for soldering a butterfly laser diode directly into driver board and large heat sink for stable heat dissipation.
Evolase Oy - PLD-CW-1000-TII constant current laser diode driver for 10/14 pin Butterfly Type II
Features
- Unified design for 10/14 pin
- Butterfly Type II Laser Diode
- Constant Current mode
- Output Current up to 1000 mA
- Compliance voltage up to 3 V
- Low current ripple
- High current stability
- USB, RS-232, CAN, UART interfaces
- LabView compatible
- Python libraries
- Analog RF Modulation
- Optical power stabilization mode
- On-Board TEC Controller
- 5 VDC Input Power
- Completed by Heatsink
- Compact Size 85 mm × 60 mm × 21 mm
Applications
- The PLD-CW-1000-TII is a constant current laser diode driver for powering 14-pin butterfly laser diode modules for applications, which require operation in low-signal RF modulation mode.
