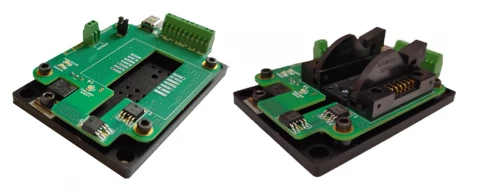

Evolase Oy - PLD-CW-2000 (ZIF socket optional) constant current laser diode driver/controller
Description
The PLD-CW-2000/PLD-CW-2000-ZIF is a constant current laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require precision low ripple constant current regulation.
The driver circuitry operates from a single 5Vdc power source. The driver supplies a bidirectional proportional-integral-derivative (PID) thermoelectric cooler controller (TEC) with current capability of 4A and voltage capability of 4V.

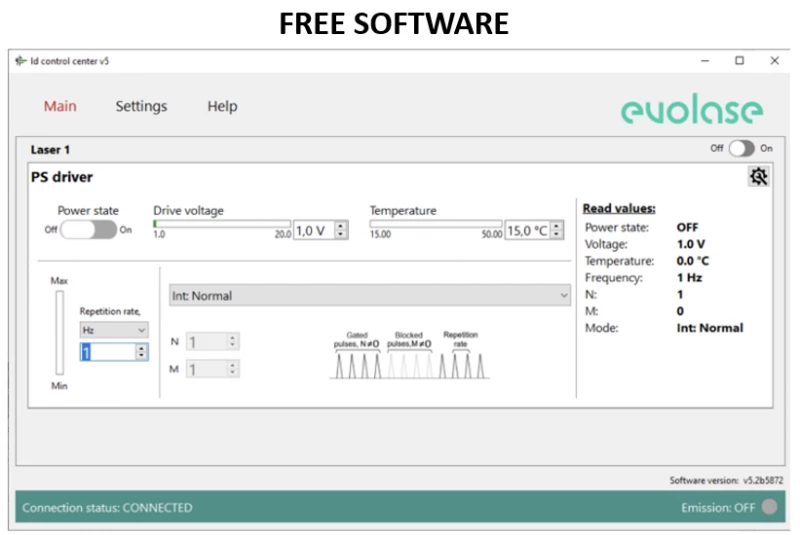

The main parameters of PLD-CW-2000/PLD-CW-2000-ZIF (output current, temperature set, monitor photodiode signal) are controlled by computer interface. The GUI can control multiple drivers connected by CAN/USB hub.
The driver supports full amplitude modulation of drive current by an external analog 0...5V and TTL signals.
Evolase Oy - PLD-CW-2000 (ZIF socket optional) constant current laser diode driver/controller
Features
- Special Design for 10/14 pin Butterfly Laser Diode
- Constant Current Mode
- Output Current up to 2000 mA
- Compliance voltage up to 3 V
- Low current ripple
- High current stability
- Control interfaces USB, RS-232, CAN
- LabView compatible
- Python libraries
- Analog and Digital full current amplitude modulation
- Optical power stabilization mode
- On-Board TEC Controller
- 5Vdc Input Power
- Completed by Heatsink
- Compact Size 85 mm × 60 mm × 21 mm
Applications
- The PLD-CW-2000/PLD-CW-2000-ZIF is a constant current laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require precision low ripple constant current regulation.
