Evolase Oy - PLD-CW-2000H-ZIF precision constant current laser diode driver
Description
The PLD-CW-2000H-ZIF is a constant current laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require high precision low ripple constant current regulation.
The driver circuitry operates from a single 5Vdc power source. The driver supplies a bidirectional proportional-integral-derivative (PID) thermoelectric cooler controller (TEC) with current capability of 4A and voltage capability of 4V. Maximum TEC current is regulated by user.
The main parameters of PLD-CW-2000H-ZIF (output current, temperature set, maximum TEC current, monitor photodiode signal) are controlled by computer interface. The GUI can control multiple drivers connected by CAN/USB hub.
The driver supports full amplitude modulation of drive current by an external analog 0…5 V and TTL signals.

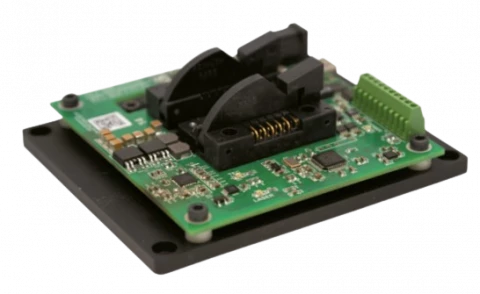

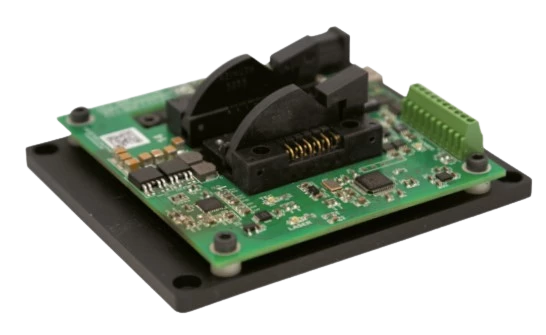

Driver has special push-in connector for easy connecting butterfly laser diode directly into driver board and large heat sink for stable heat dissipation.
Evolase Oy - PLD-CW-2000H-ZIF precision constant current laser diode driver
Features
- Special Design for 10/14 pin Butterfly Laser Diode
- High Precision Constant Current Mode
- Output Current up to 2000 mA
- High Current Stability: 0.01 mA
- Control interfaces USB, RS-232, CAN
- LabView compatible
- Python libraries
- Analog and Digital full current amplitude Modulation
- Optical power stabilization mode
- On-Board TEC Controller
- Regulated Maximum TEC Current
- Hi precision temperature stability: 0.01 deg
- 5Vdc Input Power
- Completed by Heatsink
- Compact Size 100 mm × 85 mm × 31 mm
Applications
- The PLD-CW-2000H-ZIF is a constant current laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require high precision low ripple constant current regulation.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Finland
-
Sold by:
Evolase Oy -
On FindLight:
since 2023
