Evolase Oy - PLD-NS-GSS-Tr short pulse laser diode driver with gain switch suppress & Pulse pre-shaping option
Description

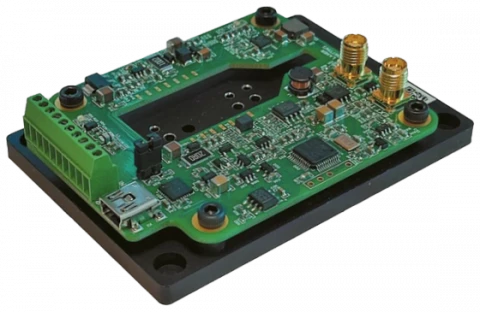

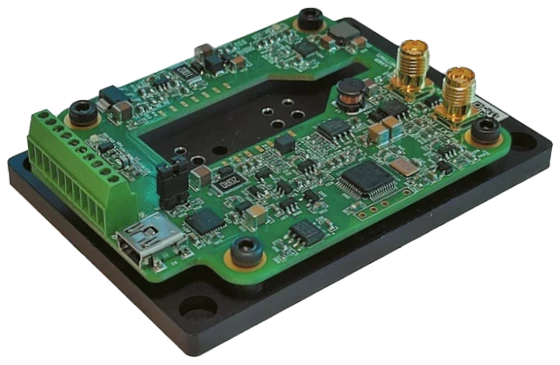

The PLD-NS-GSS-Tr is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require nanosecond pulse with long rise time. The pulse repetition frequency can be varied from 1 Hz to 1 MHz.
The driver circuitry requires a single 5 VDC power source.
All other needed voltages are generated on the board by high-frequency switching power supplies. The driver supplies a bidirectional proportional-integral-derivative (PID) thermoelectric cooler controller (TEC) with current capability of 1.5 A
and a voltage capability of 4 V.
The main parameters of PLD-NS-GSS-Tr (pulse current, bias current, rise time, pulse width, repetition frequency, temperature set) are controlled by computer interface.
The PLD-NS-GSS-Tr provides control of the bias current and the pulse rise front slope, which allows both suppressing the gain switch and pre-shaping pulses for
further amplification.
The PLD-NS-GSS-Tr has an external TTL-compatible input for repetition rate control from single shot up to 100 kHz.
The PLD-NS-GSS-Tr has an external output for synchronization with each current pulse. Driver has landing pads for soldering a butterfly laser diode directly into driver board and large heat sink for stable heat dissipation.
Evolase Oy - PLD-NS-GSS-Tr short pulse laser diode driver with gain switch suppress & Pulse pre-shaping option
Features
- Special Design for 10/14 pin
- Butterfly Laser Diode
- Output Current up to 2000 mA
- Compliance voltage up to 3 V
- Adjustable pulse width 10–500 ns
- Repetition rate up to 1 MHz
- External trigger option
- Gain switch suppress option
- Pulse pre-shaping option
- USB, CAN interfaces
- On-Board TEC Controller
- 5 VDC Input Power
- Completed by Heatsink
- Compact Size 85 mm × 60 mm × 21 mm
Applications
- The PLD-NS-GSS-Tr is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require nanosecond pulse with long rise time.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
