Evolase Oy - PLD-NS short pulse laser diode driver/controller
Description
The PLD-NS is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths from 1 ns to 100 ns. The pulse repetition frequency can be varied from 1 kHz to 10 MHz.

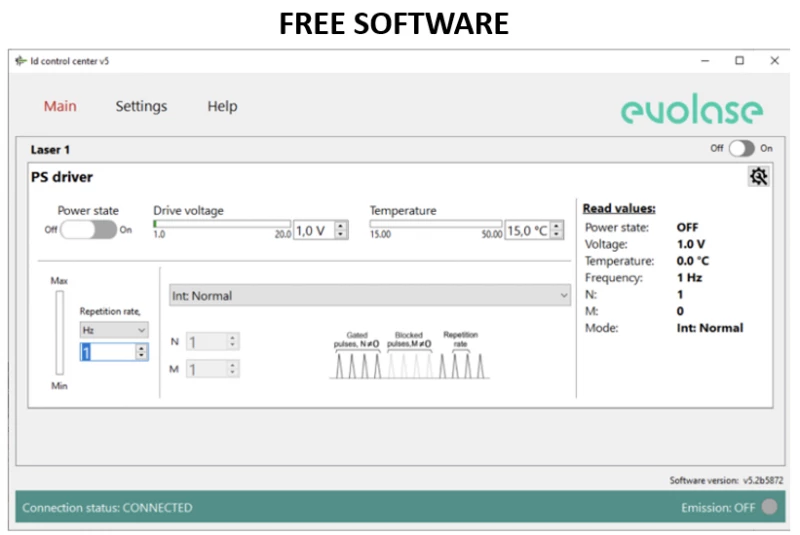

The driver circuitry requires a single 5 VDC power source. All other needed voltages are generated on the board by high-frequency switching power supplies. The driver supplies a bidirectional proportional-integral-derivative (PID) thermoelectric cooler controller (TEC) with current capability of 1.5 A and a voltage capability of 4 V. The main parameters of PLD-NS (output current, pulse width, repetition frequency, temperature set) are controlled by computer interface.
The current pulse monitor output can be viewed with an oscilloscope by on-board SMA connector allowing the user a real time view of the current. Voltage amplitude 1 V is equal to 2 A current.
The PLD-NS has an external TTL compatible input for repetition rate control from single shot up to 10 MHz. The PLD-NS has an external output for synchronization with each current pulse.
Evolase Oy - PLD-NS short pulse laser diode driver/controller
Features
- Special Design for 10/14 pin Butterfly Laser Diode
- Output current up to 2000 mA
- Compliance current up to 3V
- Adjustable pulse width 1–100ns
- Repetition rate up to 10MHz
- External trigger option
- USB, RS-232, CAN, UART interfaces
- LabView and Python libraries
- On-Board TEC Controller
- 5Vdc Input Power
- Completed by Heatsink
- Compact size 85×60×21mm
Applications
- The PLD-NS is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths from 1 ns to 100 ns.
