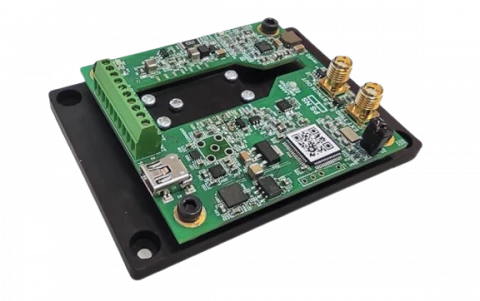

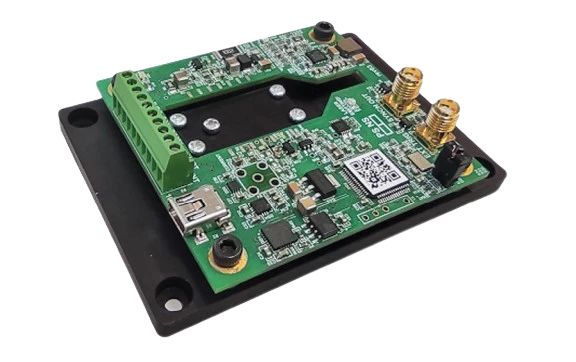

Evolase Oy - PLD-PS short pulse laser diode driver/controller
Description
The PLD-PS is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths about 50 ps. The pulse repetition frequency can be varied from 1 kHz to 30 MHz.
The driver circuitry requires a single 5 VDC power source. All other needed voltages are generated on the board by highfrequency switching power supplies. The driver supplies
a bidirectional proportional-integral-derivative (PID) thermoelectric cooler controller (TEC) with current capability of 1.5 A and a voltage capability of 4 V.

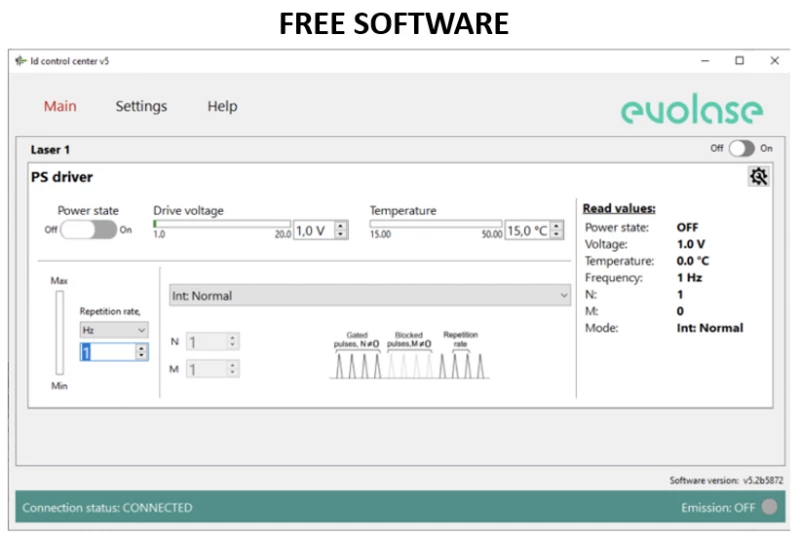

The main parameters of PLD-PS (power, repetition frequency, temperature set point) are controlled by computer interface.
The PLD-PS has an external TTL compatible input for repetition rate control from single shot up to 30 MHz.
The PLD-PS has an external output for synchronization with each current pulse.
Evolase Oy - PLD-PS short pulse laser diode driver/controller
Features
- Special Design for 10/14 pin Butterfly Laser Diode
- Output current up to 2000 mA
- Compliance voltage up to 3 V
- Extra short 50 ps pulse width
- Repetition rate up to 30 MHz
- External trigger option
- USB, RS-232, CAN, UART interfaces
- LabView and Python libraries
- On-Board TEC Controller
- 5Vdc Input Power
- Integrated heatsink
- Compact size 85 × 60 × 21 mm
Applications
The PLD-PS is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths about 50 ps.
