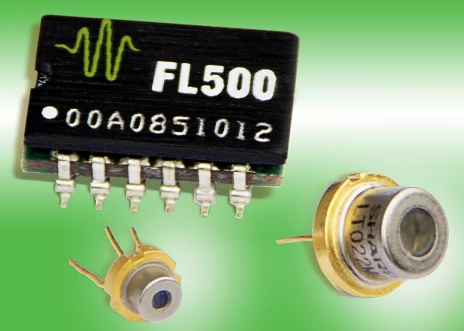

FL500 Laser Diode and VCSEL Driver
Description
The FL500 is ideal for driving low power laser diodes. It operates from 3 to 12 V, so is compatible with Li+ battery operation. It can be configured as two totally independent 250 mA drivers or a single 500 mA driver. Compatible with Type A or B laser diodes. The FL500 allows for quick and easy operation in Constant Current (CC) mode. For simple CC mode operation the only components that are required are a power supply, an analog control voltage, your laser and optional filtering circuitry. For additional features, including current limit and photodiode feedback for Constant Power operation, the FL500 can be used with the FL591 evaluation board.
FL500 Laser Diode and VCSEL Driver
Specifications |
|
|---|---|
| Supply Range: | 3 - 12 V |
| Noise Level: | 3 uA RMS at full scale |
Features
Small Package (0.75” x 0.45” x 0.255”)
Low Cost
Brownout Protection
12-pin, SMT package, Reflow Compatible
Slow Start Laser Diode Protection
Drive Up to 500 mA Output Current
Can be configured as two 250 mA drivers
Voltage Controlled Setpoint
TTL Compatible Shutdown Pin
Adjustable Current Limit on Eval boards
Adjustable Current Range Output
500 kHz sinewave Constant Current.
Applications
Drive for laser diodes and VCSELs
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The FL500 has a small package size, low cost, brownout protection, slow start laser diode protection, and can drive up to 500 mA output current. It also has a voltage controlled setpoint and TTL compatible shutdown pin.
Constant Current (CC) mode operation is a simple mode of operation for the FL500 that only requires a power supply, an analog control voltage, the laser, and optional filtering circuitry.
The FL500 is a driver for low power laser diodes that can be configured as two independent 250 mA drivers or a single 500 mA driver.
The FL500 operates from 3 to 12 V, making it compatible with Li+ battery operation.
The FL500 is used as a driver for laser diodes and VCSELs.
