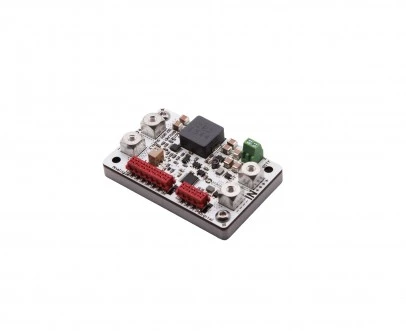

Laser Diode Current Driver OEM CW 30А 10V Model: SF6030 v2.2
Description
SF6XXX is a series of high power, compact OEM constant current laser diode drivers. This unique laser driver circuit solution allows achieving high efficiency (up to 97%) and high power density. Aluminum base plate provides effective heat removal from laser diode driver module via water or air cooling. This laser current driver have generous amount of protection features for laser diode safety operating.
Laser Diode Current Driver OEM CW 30А 10V Model: SF6030 v2.2
Specifications |
|
|---|---|
| Laser Diode Protection: | Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock |
| Output Current Range (I): | 0-30 A |
| Output Voltage Range (0.75*Vin Max) (V): | 1-10 V |
| Setpoint Resolution: | 0.01 A |
| Rise Time (Iout = 15A) : | min - 300μs; max - 700μs |
| Rise Time (Iout = 30A) : | min - 300μs; max - 600μs |
| Fall Time: | min - 300μs; max - 1500μs |
| Current Stability: | <0.2 % |
| Current Setpoint Absolute Accuracy: | <1 % |
| Dimensions: | 57.9 mm x 36.8 mm x 15 mm |
| Weight: | 55 g |
| Input Voltage Range (Vin):: | 10-14 V |
| User Interface: | Analog/ RS-232 / UART (USB as a paid option 20 €) / Enable / Disable Input Signal Input |
Features
- ULTRA-COMPACT 57.9 mm x 36.8 mm x 15 mm
- Very High efficiency up to 97%
- NTC thermistor input (for shutdown driver when the laser diode was overheating)
- Analog Control Signal/ RS-232 / UART/ (USB as a paid option 20 €)
- Soft-Start Current Ramp to User Set-Point
- Possibility to calibrate current within 5%
- Multiple Layers of Laser Diode Protection

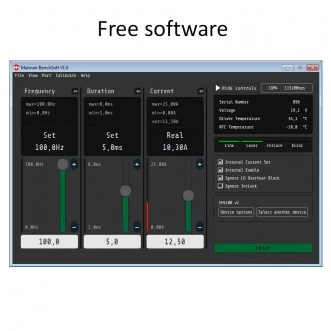

- Free software
Applications
- Driving/controlling Laser Diodes for high power laser drivers in laser marking, welding, soldering, and cutting applications, as well as medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders and laboratory test set-ups.
- These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, BWT Beijing Laser Diodes, IPG Photonics, Dilas Diodenlaser, Lumentum and others.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Spain
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the SF6030 comes with free software.
The SF6030 can be used for driving and controlling laser diodes in high power laser drivers for applications such as laser marking, welding, soldering, cutting, medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders, and laboratory test set-ups.
The SF6030 is ultra-compact, measuring 57.9 mm x 36.8 mm x 15 mm.
The SF6030 is a high power, compact OEM constant current laser diode driver with a unique circuit solution that allows for high efficiency and power density.
The SF6030 has multiple layers of laser diode protection, including thermal warning and shutdown, reverse current protection, and crowbar circuit protection.
