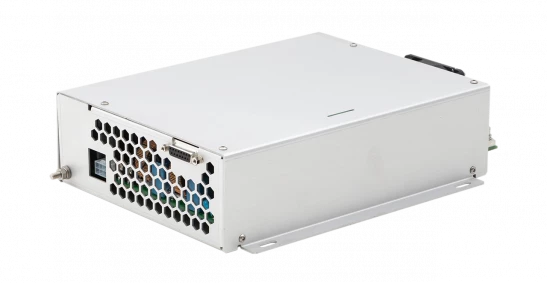

Pulsed laser diode driver PDD-300, certified
Description
PDD-300 high-power pulsed laser diode driver series, which are fast-switching, low-noise, accurate and efficient current sources for laser diodes. It was developed, first of all, for medical and medical aesthetic treatments, namely, for hair removal applications.
PDD-300 has averaged output power up to 300 W and maximum peak output power up to 5000 W (depending on user defined Imax and Vmax), runs on common 100‑240 V AC, 50/60 Hz, so you don't need extra power supply for the drivers. More powerful series are PDD-1600 and PDD-1000.
Since the driver was specially designed for hair removal applications, it is fully compliant to the latest versions of medical standards: IEC 60601-1:2005/AMD1:2012 for electrical safety and IEC 60601-1-2:2014 for EMC, so PDD 300 can be used in medical systems without any modifications, any additional filtration or additional means of protection.
Pulsed laser diode driver PDD-300, certified
Features
- Medical grade (full comliance to IEC 60601-1 ed. 3 and IEC 60601-1-2)
- 100-240 V AC input
- Average output power up to 300 W
- Output current up to 200 A
- Compliance voltage up to 50 V
- Forced-air cooling with integrated fan
- 3-year guarantee
Applications
- Hair removal with direct diodes
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The maximum peak output power of the PDD-300 pulsed diode driver can reach up to 5000 W, depending on the user-defined Imax and Vmax.
The PDD-300 pulsed diode driver runs on common 100-240 V AC, 50/60 Hz, so there is no need for an extra power supply.
Yes, the PDD-300 pulsed diode driver is fully compliant with the latest versions of medical standards, including IEC 60601-1:2005/AMD1:2012 for electrical safety and IEC 60601-1-2:2014 for EMC.
The PDD-300 pulsed diode driver has an averaged output power of up to 300 W.
The PDD-300 pulsed diode driver is specifically designed for hair removal applications using direct diodes.
