Evolase Oy - PLD-PS-SYNC laser diode driver with Master/slave operation mode with the repetition rate jitter suppression
Description

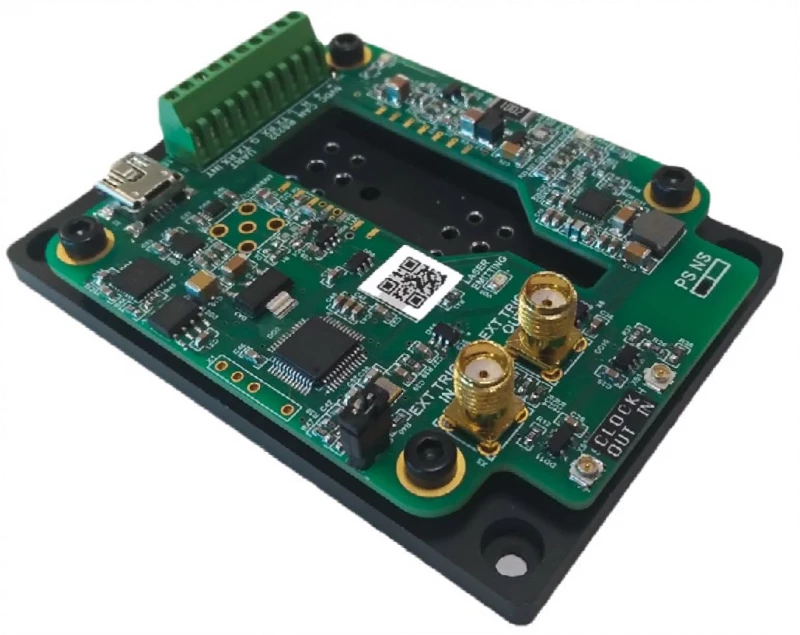

The PLD-PS-SYNC is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths about 50 ps. The pulse repetition frequency can be varied from 1 kHz to 30 MHz.
The driver is specially designed to minimize jitter between external trigger signal and optical pulse by enabling external clock synchronization. The driver also supports operation in Master/Slave mode and synchronization of optical pulses between two lasers, one operates as Master and another one as Slave, with the optical pulse position jitter below 500 ps and tunable delay between the optical pulses from two lasers.

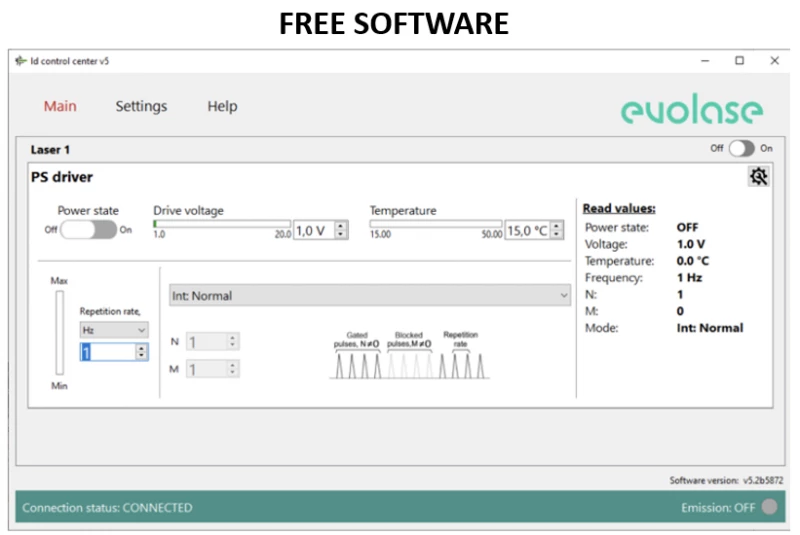

The main parameters of PLD-PS-SYNC (power, repetition frequency, temperature set point, pulse delays in sync mode) are controlled by computer interface.
The PLD-PS-SYNC has an external TTL compatible input for repetition rate control from single shot up to 30 MH. The driver has an external output for synchronization with each current pulse. The PLD-PS-SYNC has an external input/output of the clock frequency for synchronous operation of two drivers with minimal period jitter between optical pulses.
Evolase Oy - PLD-PS-SYNC laser diode driver with Master/slave operation mode with the repetition rate jitter suppression
Features
- Special Design for 10/14 pin Butterfly Laser Diode
- Output current up to 2000 mA
- Compliance voltage up to 3 V
- Extra short 50 ps pulse width
- Repetition rate up to 30 MHz
- External trigger option
- External clock option
- Master/slave operation mode with the repetition rate jitter suppression
- USB, RS-232, CAN, UART interfaces
- On-Board TEC Controller
- 5Vdc Input Power
- Completed by Heatsink
- Compact Size 85 mm × 60 mm × 21 mm
Applications
- The PLD-PS-SYNC is a compact short-pulse seed laser diode driver for powering 10/14-pin butterfly laser diode modules for applications, which require pulse widths about 50 ps.
- The PLD-PS-SYNC has an external input/output of the clock frequency for synchronous operation of two drivers with minimal period jitter between optical pulses.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Finland
-
Sold by:
Evolase Oy -
On FindLight:
since 2023
