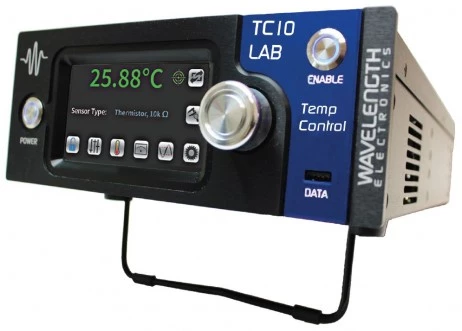

Ultra-stable Temperature Controller Instrument
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The TC Laboratory Series offers an unparalleled level of temperature stability, making it an essential tool for precision-driven research environments. Designed with cutting-edge technology, this instrument ensures temperature stability better than 0.0009ºC, making it ideal for applications that demand meticulous thermal management. The series includes two versatile models with output currents of 5 A and 10 A, catering to diverse research needs. With a compliance voltage of 15 V, these controllers are robust enough to handle a variety of demanding applications. The intuitive touchscreen interface enhances user interaction, providing a seamless and efficient experience.
Engineered for compatibility, the TC Laboratory Series supports a wide range of sensors, including thermistors, RTDs, linear voltage and current sensors, and the innovative IR sensors. These IR sensors enable non-contact and contamination-free temperature measurements of liquids and solids, offering a significant advantage in sensitive research scenarios. Safety is paramount, and the TC Laboratory Series is equipped with several protective features, such as adjustable current limits, over-temperature protection, and a shutdown signal to safeguard against thermal extremes.
The TC Laboratory Series is not only about precision but also about convenience and adaptability. It includes a complete command set for remote control, allowing integration with computer systems for advanced automation. The instruments are RoHS and CE compliant, ensuring they meet international safety and environmental standards. Additional features like USB and Ethernet interfaces, data collection capabilities, and field-upgradable firmware further enhance the instrument's functionality, making it a comprehensive solution for modern laboratories.
Ultra-stable Temperature Controller Instrument
Specifications |
|
|---|---|
| Output Current: | 5 or 10 A |
| Compliance Voltage: | 15 V |
| Temperature Stability (1 Hour): | 0.0009 ºC |
| Temperature Stability (24 Hours): | 0.002 ºC |
| Temperature Coefficient: | 5 10 18 ppm / ºC |
| AC Input Voltage: | 115/230 ±15% VAC |
| Power-line Frequency: | 50/60 Hz |
Features
- Two Models Available: Choose between 5 A and 10 A output current options.
- High Compliance Voltage: Offers a compliance voltage of 15 V.
- Exceptional Temperature Stability: Maintains stability better than 0.0009ºC.
- Sensor Compatibility: Works with a variety of sensors including thermistors, 2, 3, or 4-wire RTDs, linear voltage sensors, linear current sensors, and new IR sensors for non-contact measurement of liquids or solids.
- Intuitive User Interface: Features a touchscreen for easy operation.
- Autotune Functionality: Automatically sets ideal control parameters for optimal performance.
- Remote Control Capabilities: Complete command set for computer-based remote control.
- LabVIEW Interface: Seamlessly integrates with LabVIEW software.
- Auxiliary Input: Includes an input for a heatsink sensor.
- Compliance: CE compliant and RoHS compliant.
- Comprehensive Documentation: All software and documentation provided on a USB flash drive.
- Optional Rack Mount Kit: Available in 2 U height, ½ rack width.
- Flexible Power Input: AC input switch selectable from 115/230 ±15% VAC with a 50/60 Hz power-line frequency.
Applications
- Electro-Optical Research: Ideal for applications requiring precise temperature control to maintain optimal performance of electro-optical devices.
- Medical Equipment: Ensures stable temperature conditions for sensitive medical instruments and devices.
- Spectroscopy: Provides ultra-stable temperature control, crucial for accurate spectroscopic measurements.
- Defense Systems: Reliable temperature stability for defense applications where precision is critical.
Frequently Asked Questions
The TC LAB Series instruments have several safety features, including adjustable current limit with Brick-Wall Never-Exceed circuitry, password protection to lock out a selectable control set, over-temperature protection circuit, temperature limits on the load, and shutdown signal to the QCL/laser driver load to protect against over or under temperature situations.
The TC LAB Series instruments are compatible with a variety of sensors, including thermistors, 2, 3, or 4-wire RTDs, linear voltage sensors, linear current sensors, and IR sensors for measuring liquids or solids without contact or contamination.
The TC LAB Series instruments are particularly reliable for research in electro-optical, medical, spectroscopy, and defense systems wherever precision temperature control is required.
Yes, the TC LAB Series instruments have a complete command set for remote control from a computer.
The temperature stability of the TC LAB Series instruments is better than 0.0009°C.
