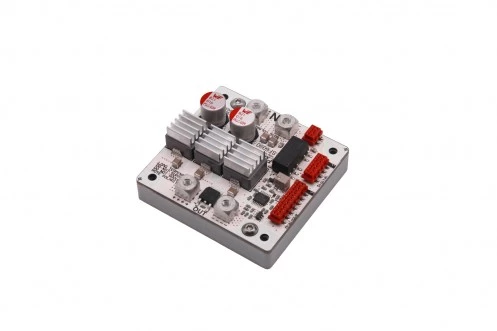

High Current Laser Diode Driver CW 100А 10V Model: SF6090 v1.1
Description
SF6XXX is a series of high power, compact OEM constant current laser diode drivers. This unique laser driver circuit solution allows achieving high efficiency (up to 97%) and high power density. Aluminum base plate provides effective heat removal from laser diode driver module via water or air cooling. This laser current driver has generous amount of protection features for a safe operation of laser diodes.
High Current Laser Diode Driver CW 100А 10V Model: SF6090 v1.1
Specifications |
|
|---|---|
| Output Current Range (I): | 0-100 A |
| Output Voltage (0.75*Vin Max) (V): | 1-10 V |
| Minimum Current Set-Point Step Size: | 0.03 A |
| Rise Time (Iout = 100A): | min - 800μs; max - 1200μs |
| Rise Time (Iout = 50A): | min - 700μs; max - 1000μs |
| Fall Time: | min - 1000μs; max - 1800μs |
| Current Stability: | <0.2 % |
| Current Setpoint Absolute Accuracy: | <1 % |
| Dimensions: | 61 mm x 57.9 mm x 24 mm |
| Weight: | 146 g |
| Input Voltage Range (Vin): | 10-14 V |
| User Interface: | Analog/ RS-232 / UART (USB as a paid option 20 €) / Enable / Disable Input Signal Input |
| Laser Diode Protection: | Soft-Start Ramp to Current Setpoint/ User Adjustable Current Limit/ Over-Current Protection Fast Shutdown/ Over-Temperature Thermal Warning and Shutdown /Reverse Current Protection/ Crowbar Circuit Protection/ Disable Input/ Interlock |
Features
- ULTRA-COMPACT 61 mm x 57.9 mm x 24 mm
- Very High efficiency up to 98%
- NTC thermistor input (for shutdown driver when the laser diode was overheating)
- Analog Control Signal/ RS-232 / UART (USB as a paid option 20 €)
- Soft-Start Current Ramp to User Set-Point
- Possibility to calibrate current within 5%
- Multiple Layers of Laser Diode Protection

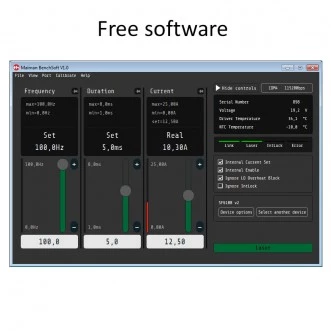

- Free software
Applications
- Driving controlling Laser Diodes through high power laser drivers for laser marking, welding, soldering, and cutting applications, as well as medical equipment, laser measurement equipment, spectrometers, LIDAR, range finders and laboratory test set-ups.
- This OEM CW Laser Diode Driver driver is an excellent choice for High Current Diode Bars and Diode Stacks, Diode Modules from II-VI Laser Enterprise, Dilas Diodenlaser, Lumentum, Focuslight, Northrop Grumman, Jenoptik, LIMO and others.
